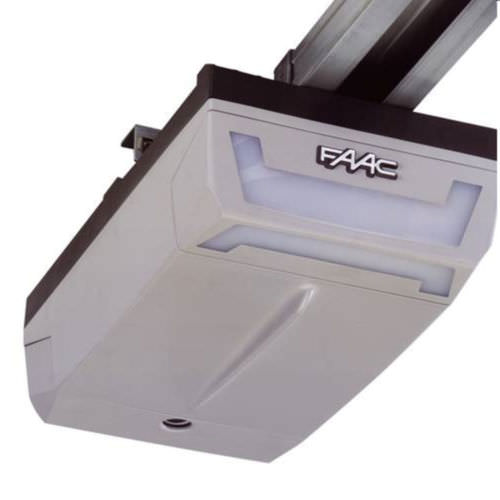

Door operator D600

Product overview
Electromechanically driven operator for residential sectional doors or spring/counterbalanced up-and-over doors. Designed for straightforward installation and compliant automated operation.

Product details

• Non-reversing facility: no need to install locks or bolts
• Bi-stable release device (patented)
• Anti-crushing device enabling compliance with relevant European Directives
• Safety edge not required
• Pre-installed rail and tool-free installation with rotation coupling for rapid mounting
• Quiet belt transmission as standard (chain option available)
• Adjustable travel limit with electronic slow-down

Key features

• For residential sectional doors or spring/counterbalanced up-and-over doors
• Quick, simple installation thanks to pre-installed rail and tool-free rotation coupling
• Belt transmission as standard

Variants
Model Variant | Part Number
D600 | 110600
D1000 | 110601

Technical specifications

• Max thrust: 600 N
• Power: 220 W
• Carriage speed: 6.6 m/min
• Noise level: 45 dB(A)
• Non-reversing facility (no locks/bolts required)
• Bi-stable release device (patented)
• Anti-crushing device for compliance with European Directives
• Safety edge not necessary
• Pre-installed rail and tool-free installation with rotation coupling
• Quiet belt transmission as standard
• Adjustable travel limit with electronic slow-down
