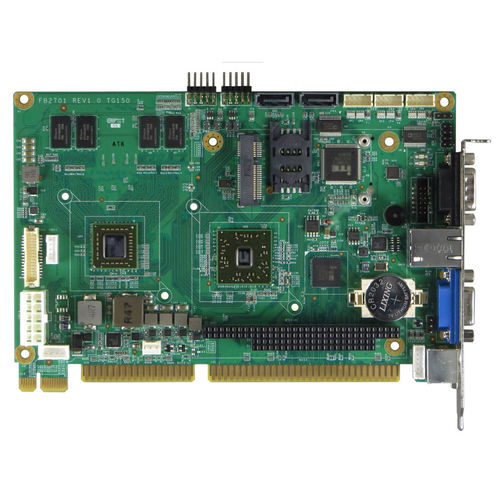

PCIe CPU board FB2701

AMD

Special Features: Fanless, Low Power & Supporting Dual Display Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - AMD G-Serial T40E Operating Freq. (Hz) - 1GHz Max Chipset - AMD Fusion controller hub A55E BUS I/F - ISA、PC/104、PCIe L2 Cache - 512KB Per core On-Board DRAM - - DRAM Socket - 204-Pin SoDIMM *1 (DDR3L, 4GB Max) VGA Chipset - AMD T40E(AMD Radeon HD 6250) VRAM - UMA 384MB Max Display - VGA、LVDS Dual Display - Yes Audio - Yes (Option) Serial Port - RS232 *3、RS232/422/485 *1 Parallel Port - - SATA - SATA*2 KB/Mouse - Yes LAN - 1 (Giga LAN) USB - 4 (2.0) GPIO - - WDT / HWM - No / Yes Mini-Card - mSATA or PCIe Mini-Card Flash/Memory Socket - CFast Socket *1 BIOS - AMI Power Required - +5V Only, 30VA Max Operation System - Windows XPe / 7 / 8 / 8.1 / 10 and Linux Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 185 x 122 mm
