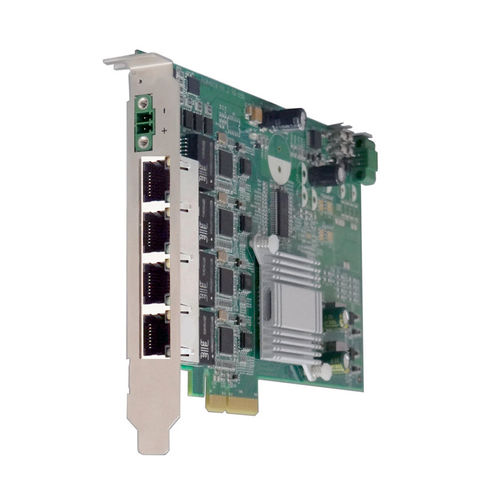

PCI Express interface expansion card FB4070

gigabit EthernetLANRJ45

4-CH PoE GigE PCIE Interface Card Specifications PCI Express® x4 compliant Four Intel® i210 Gigabit Ethernet Mac Controller and PHY ports Support 9KB Jumbo Frame and Link Aggregation (Teaming) Supports IEEE 802.1 Audio Video Bridging (AVB) Supports IEEE 802.3u Auto-Negotiation Support IEEE 1588 compliant Supports PoE (Power over Ethernet) IEEE 802.3 af/at compliant Powered Device (PD) auto detection and classification Supports Inrush current, current limit, and short-circuit protection LED indicator –RJ45 LAN Data access PoE Powered Device (PD) connectivity status Power requires Base on FB4070:+5V/1.1A, +12V/220mA Max. PoE Power Input: 48V/1.6A Max. (Power consumption: 75W Max.) PoE Power Input: 48V/2.5A Max. (Power consumption: 120W Max.) 48VDC Terminal Block power input for 15.4W or 25.5W per PoE port Dimension : 167.7 mm x 107.7 mm
