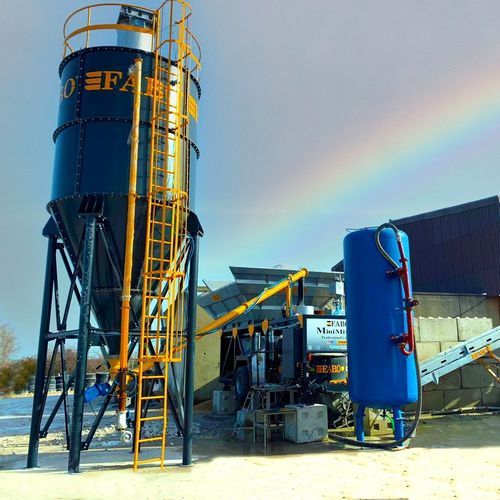

Mobile concrete batching plant MINIMIX-30

• Bunker Capacity: 20 m3 • Number of compartments: 4 x5 m3 • Made of 6 mm ST-37 A1 quality specially curved sheet for longer life. • There is 2 x 0.37 kW vibro motor in the sand chamber to increase the fluidity. • If desired, optionally, grid can be installed in the system to prevent coarse aggregate. • Discharge is provided by pneumatic piston. • Weighing Capacity of the Hopper : 1 m3 • Sheetmetal Material and Thickness : • St-37 A1 quality – 5 mm • Vibromotor : 1 Unit – 0.37 kW  equivalent brand • Load – cells : 4 x 1000 kg • Model: 0,5 m3 Pan Mixer. • liquid concrete volume:0,5 m3 • Feeding volume: 750 lt • Ready-mixed concrete volume: 625 lt • Compacted concrete volume: 500 lt • Motor: 18.5 kW, planetary gearbox connected to the electric motor • Mixer body is made of 8 mm ST-37 A1 quality sheet metal. • Body lining is made of 10 mm ST-52 A1 quality sheet metal. • Insole 10 mm HARDOX metal. • Cover opening and closing system is provided by a hydraulic unit. • Mixing arms 6 pieces. • Mixer and scraper pallets 20 mm HARDOX metal.
