Impact crushing and screening plant MTK-100

mobilesand productiontertiary

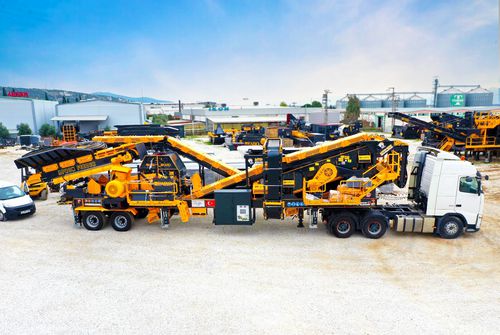

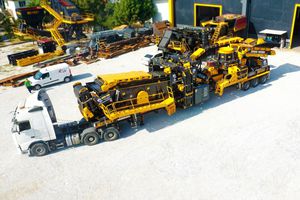

*All of our products are produced with care and covered for 1 year warranty! *Installation and Operator Training FREE FABO MTK Series are mobile type & closed circuit crushing and screening plant also known as SAND MAKING MACHINE that is used for high percentage of cubical shape sand production purpose by processing soft and medium hard materials such as limestone, gypsum etc. MTK Series includes one stage of crushing process that is made by a tertiary impact crusher which is capable to produce high percentage of sand with good cubical shape. TECHNICAL SPECIFICATIONS: -Bunker: 10 m3 -Plant Dimensions: 16000x4500x3700 mm -Production Capacity: 150-200 Tons Per Hour -Crusher Type & Rotor Size: Tertiary Impact Crusher – 1200x1000 mm -Maximum Feeding Size: 120 mm -Vibrating Screen Size and Deck: 1400x4000 mm 3 decks -Total Motor Power: 300 Kw -Generator (optional): 400 kvA MTK-100 IS A COMBINATION OF: • - Hopper • - Vibrating Feeder • - Tertiary Impact Crusher • - High Stroke Type Vibrating Screen • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintanance • - Diesel Generator (Optional) • - FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
