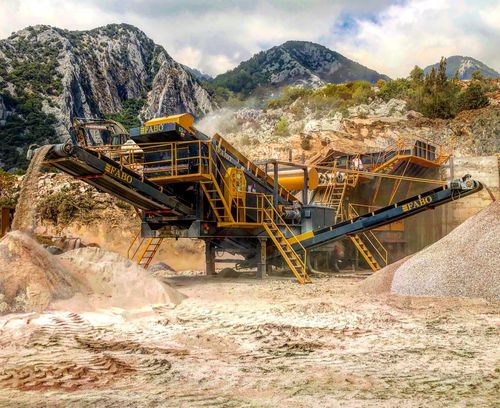

Impact crushing and screening plant PRO 100

mobilehigh-capacitystone

Closed circuit crushing till to get desired size of product Capacity is variable according the material feed and final product dimensions to be crushed. All equipments are assembled on single special heavy duty construction chassis, transportable by 1 truck Conveyors are foldable Up to 3 different sizes of aggregates Since the whole plant is built in one chassis, it has the advantage of the fastest production line PRO Serie Mobile Crusher Plant can be used by single operator, feed can be done by truck, loader or excavator Plant can be installed in 2 days with its special heavy duty construction chassis With its multifunctional primary impact crusher, plant can crush different product sizes with high capacity It is equipped with 3 axle, air-controlled brake system and signaling system. Hydraulic system is controlled by remote system All motors are under protection with metal sheet covers The dust suppression control system prevents dusting by conveying high pressure water. Mobile system has complete fully automation system. Also the plant can be controlled by using tablet with single staff. Bunker:25m3 Plant Dimensions:18000x4600x4700 mm Production Capacity:130-180 Tons Per Hour Crusher Type & Rotor Size:Turbo Impact – 1200x1000 mm Maximum Feeding Size:600 mm Vibrating Screen Size and Deck:1800x4500 mm 3-4 decks Total Motor Power:290 Kw Generator Capacity:450 kvA Bunker Vibrating Grizzly Feeder Turbo Impact Crusher High Stroke Type Vibrating Screen Folding type feeding, feedback, bypass and stock conveyor belts Hydraulic feet Mobile Chassis with axles and tires Fully Automation System Dust Suppression System Easy walking platforms for maintenance Diesel Generator
