Cone crusher CC-200

stationarysecondaryfor mineral material

Product overview

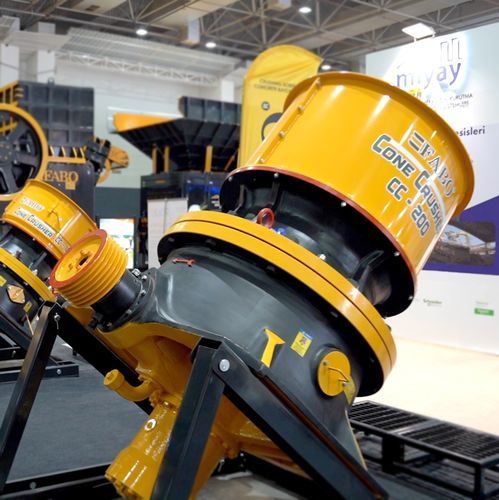

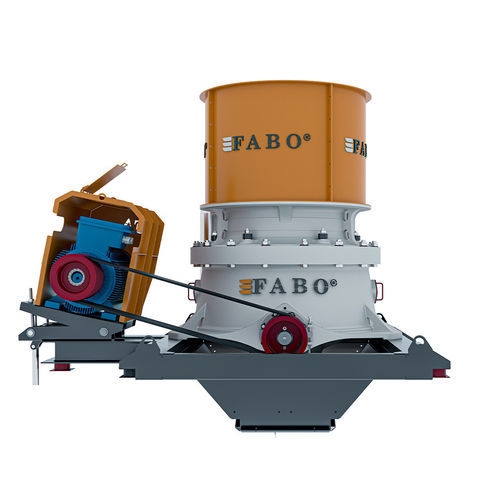

The CC-200 cone crusher is a secondary crushing unit designed for hard, abrasive rocks such as granite, basalt and andesite. Equipped with a 132 kW motor, it accepts up to 185 mm feed depending on the selected crushing chamber and has a nominal operating weight of 10,516 kg. The crusher uses long-life wear parts and is engineered for straightforward maintenance to minimize spare-parts consumption and reduce operating downtime.

Main structural elements

• Body (bottom and top)
• Adjustment ring and feeding plate
• Core and main shaft
• Eccentric sleeve and cone gear
• Drive assembly
• Concaves and core linings
• Crushed material groove
• Adjustment mechanism
• Lubrication system

Technical data (Metric)
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (mm) | 185 | 145 | 115 | 90 | 75 | 50 | 38
Motor Power | 132 kW
Weight | 10516 kg
Nominal capacity in tph (mm) with crusher operating in CSS (columns correspond to feed sizes: 4, 5, 6, 8, 10, 13, 16, 19, 22, 25, 29, 32, 35 (x2 cols merged), 38, 41):
Feed sizes (mm) | 4 | 5 | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41
EC | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -

Technical data (Imperial)
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (inch) | 7'' | 6'' | 4'' | 3'' | 3'' | 2'' | 1''
Motor Power | 177 hp
Weight | 23.181 lb
Nominal capacity in tph (inch) with crusher operating in CSS (columns correspond to feed sizes: 0.1'', 0.2'', 0.2'', 0.3'', 0.4'', 0.5'', 0.6'', 0.7'', 0.8'', 0.9'', 1.1'', 1.2'', 1.3'' (x2 cols merged), 1.4'', 1.6''):
Feed sizes (inch) | 0.1'' | 0.2'' | 0.2'' | 0.3'' | 0.4'' | 0.5'' | 0.6'' | 0.7'' | 0.8'' | 0.9'' | 1.1'' | 1.2'' | 1.3'' | 1.4'' | 1.6''
EC | - | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -

Characteristics / Technical specifications

• Model: CC-200
• Type: Cone crusher (secondary crushing)
• Motor power: 132 kW (177 hp)
• Maximum feed (metric): up to 185 mm depending on crushing chamber
• Maximum feed (imperial): up to 7" depending on crushing chamber
• Weight: 10,516 kg (23,181 lb)
• Nominal capacity: detailed capacity ranges per crushing chamber type (EC, C, MC, M, MF, F, EF) and feed size are provided above
• Designed for hard, abrasive materials such as granite, basalt and andesite
• Low spare-parts consumption due to long-life wear parts
• Easy maintenance and repair to reduce operating costs
• Main structural elements: Body, Adjustment ring and feeding plate, Core and main shaft, Eccentric sleeve and cone gear, Drive assembly, Concaves and core linings, Crushed material groove, Adjustment mechanism, Lubrication system
