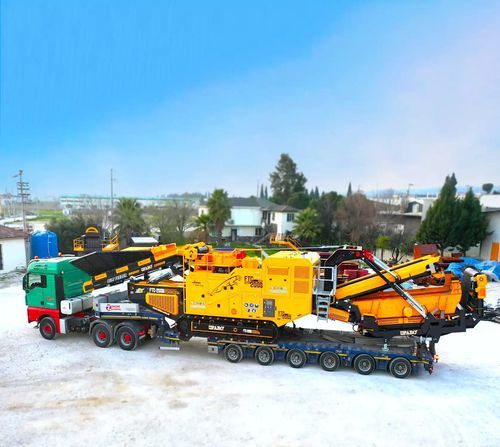

Cone crusher FTC series

mobilecrawlersecondary

Overview
FABO Global’s FTC Series mobile cone crushers provide efficient secondary and tertiary crushing of hard rock, concrete and recycled materials. Designed as tracked mobile plants, they combine optimized material flow, adjustable output settings and energy-efficient drive systems for continuous on-site operation.

Key Benefits

• On-site crushing to reduce hauling and handling costs.
• High-capacity, energy-efficient design for improved throughput and lower operating expense.
• Adjustable output settings for consistent particle size and product grading.
• Wear-resistant components and construction for continuous heavy-duty operation.
• Flexible mobility for multi-site projects in mining, quarrying, construction and recycling.

Features & Components

• Belt feeder for uniform feed rate
• CC-200 series cone crusher (configurable)
• Optional hybrid power and control systems
• Vibrating screens in various sizes depending on model

Models in the FTC Series

• FTC-200 Mobile Cone Crusher
• FTC-200-s Mobile Cone Crushing & Screening Plant
• FTC-300 Mobile Cone Crusher
• FTC-300-s Mobile Cone Crushing & Screening Plant

FTC-200 — Crushing Chamber / Maximum Feed (examples)

• Baseline feeding opening EC: 185 mm
• Baseline feeding opening EF: 35 mm
• Additional feed size variants available up to 48 (see model tables for ranges)

FTC-200 — Core Specifications

• Production capacity: 150–250 TPH
• Crusher type: Cone crusher (CC-200)
• Power: 275 kVA
• Weight: 38,500 kg

FTC-200-s — Core Specifications

• Production capacity: 150–250 TPH
• Crusher type: Cone crusher (CC-200)
• Power: 275 kVA
• Vibrating screen size: 1500 × 3800 mm
• Weight: 44,500 kg

FTC-300 — Core Specifications

• Production capacity: 220–340 TPH
• Crusher type: Cone crusher
• Power: 500 kVA
• Weight: 42,000 kg

FTC-300-s — Core Specifications

• Production capacity: 220–340 TPH
• Crusher type: Cone crusher
• Power: 500 kVA
• Vibrating screen size: 1500 × 4200 mm
• Weight: 51,500 kg

Applications

• Mining and quarrying (secondary and tertiary crushing)
• Aggregate production for road base, sub-base and fine material
• Construction and demolition recycling

FAQ Highlights

• What are mobile cone crushers used for? — On-site reduction of hard rock, aggregates and demolition debris.
• How do they work? — A high-speed rotating cone crushes and compresses material; output size is controlled by settings and chamber selection.
• What output sizes are possible? — Adjustable from coarse to fine depending on configuration and settings.
• Are they fuel-efficient? — Modern units use optimized engines and hydraulic systems to reduce fuel consumption while maintaining performance.
• Mobility vs stationary crushers? — Mobile units prioritize on-site flexibility and lower transport costs; stationary plants may offer higher absolute capacity but lack mobility.

Technical specifications

• Series: FTC Series (FTC-200, FTC-200-s, FTC-300, FTC-300-s)
• Production capacity range: 150–340 TPH (model dependent)
• Crusher type: Cone crusher (CC series)
• Power: 275 kVA (FTC-200 / FTC-200-s) — 500 kVA (FTC-300 / FTC-300-s)
• Weights: 38,500 kg — 51,500 kg (model dependent)
• Vibrating screen sizes: 1500 × 3800 mm, 1500 × 4200 mm (model dependent)
• Key components: belt feeder, CC series cone crushers, hybrid options, vibrating screens
