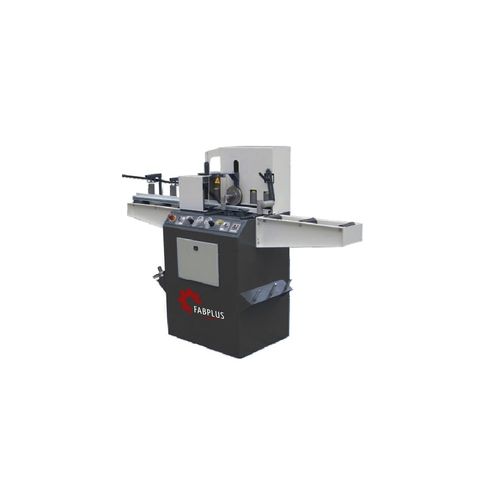

Semi-automatic insertion machine

Rubber insertion machine This machine has been developed to assemble the rubbers in the aluminum frames, thus eliminating down times in production. With a system of semi-automatic advance of the profile and a great capacity of feeding it is the ideal solution for assembly of rubber even for big profiles of curtain wall fabrication. Standard Features • Adjustable rubber guides. • Polyamide rollers with bearings to avoid damaging the profile. • Quick change holders. • Automatic profile feeding. Optional Features • Rubber roll support • Roller setups according to rubber. Technical information • Power : 220V or 600V (with transformer) • Dimensions (LxWxH) : 2074 x 591 x 1441 mm • Working height 953 mm • Automatic Feed • Maximum Capacity Profiles up to 250 mm • Pneumatic pressure 6 Bar.
