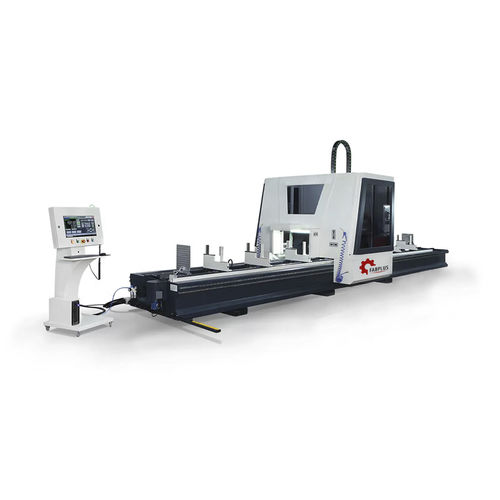

5-axis machining center

verticalfor aluminumfor PVC

5 axis CNC Standard Features • 12kW 24,000 RPM Main spindle. • 6.5 meters of processing lenght. • Safe and continuous (pendular) working. • Automatic recovery of working shaft from profile by means of a program in case of power outage. • Protection of machine computer and restarting the interrupted program thanks to UPS. • The absence of any material that could be damaged in the areas where sawdusts and wastes fall provides a long life. • Standard model has sawdust conveyor, 10 clamps and tool chuck with 16 tool holding capacity. Number of clamps can be increased optionally. • Long-life moving parts with automatic lubrication system. • Robust Mechanical Design suitable for high speed and acceleration. • Machine management ensuring high performance. • Mitsubishi CNC M720VW control unit, internal HDD, optical communication, high speed and precision, 0.001mm command increment and Ethernet. Optional Features • Additional clamps • Extra length • Custom tooling, bits, blades • Transformer Technical Specifications • Total power : 24kW • Voltage : 400V (Can be customized to 600V, 220V or other with transformer) • Processing travel (X,Y,Z) : 7000x 1250 x 590mm (also available in 11 and 15 meters) • Maximum profile (WxLxH) : 650x 6500 x 350mm • Maximum blade specs : 500mm x 30 x 4mm • Weight 11250kg • Machine Dimensions (WxLxH) : 10370 x 3330 x 2846mm
