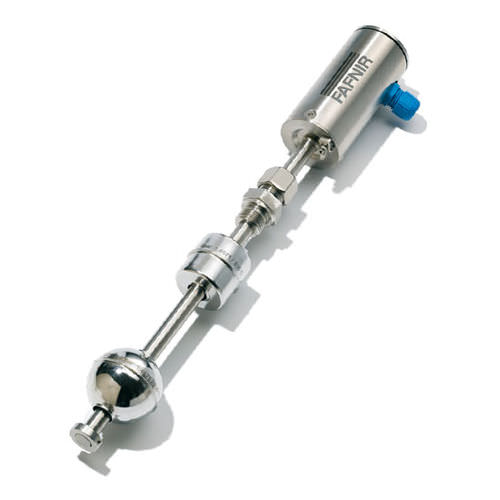

Magnetostrictive level sensor TORRIX Standard

for oilfor waterfor liquids

TORRIX is ideally suited for measuring in all non-adhesive liquids and almost all tank geometries. There is no need to adjust the sensor to the liquid or the shape of the tank. Another advantage is that there are no dead zones in the upper and lower areas. The starting point of the measurement is only defined by the size of the float; therefore the entire volume can be measured and used. All standard fittings and flanges available SIL 2 (proven in use) System with toxic chemicals The TORRIX can be welded gas tight with any flange and reduce the potential for leaks in your system less. This allows TORRIX be used in processes with hazardous fluids such as ammonia. Highly accurate measurement, ideal for dispensing volume With an accuracy of up to 0.3 mm, TORRIX can be used for precise level measurement allowing leak detection in small storage tanks. In combination with a metering valve, the liquid level measurement feature can also be used to fill a well-defined volume in a process tank. Depending on the geometry of the tank, the accuracy with a filling volume of 100 ml is as low as 2%. Such is the accuracy of TORRIX, it can also be used in a calibration rig to check the accuracy of other level sensors. Bypass applications with magnetic level indicator In magnetic level indicator applications, the magnetic indicators are actuated by the magnetic field of a float in the interior of the bypass. The magnetic field of this float can also be measured by a TORRIX which is mounted on the exterior of the bypass. The TORRIX can therefore measure the level without media contact and without additional intervention in the process tank.
