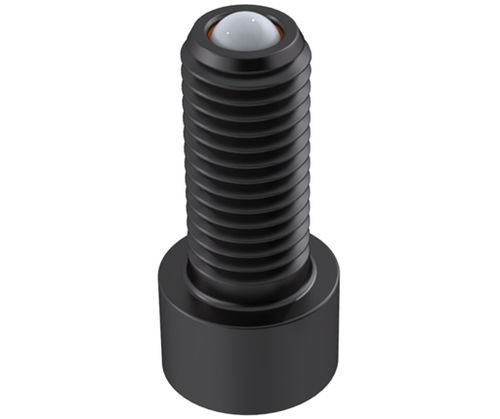

Thrust screw TSH-0310-DB
cylindrical headhex socketsteel

thrust screw
thrust screw
thrust screw
Add to favorites
Compare this product


Characteristics

Applications
thrust
Head
cylindrical head
Drive type
hex socket
Materials
steel, alloy
Other characteristics
swiveling ball
Length

Max.: 4.2 in

Min.: 0.77 in

Description

These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force on to the contact area. The free floating ball design allows the thrust screw to continue to rotate while the ball remains stationary against the contact surface. Ideal for irregular shaped or contoured applications. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is held in place with a viton O-ring which keeps contaminants out and allows the ball to swivel. The ball is made from non-marring white delrin. Replacement balls and O-rings can be ordered separately.
