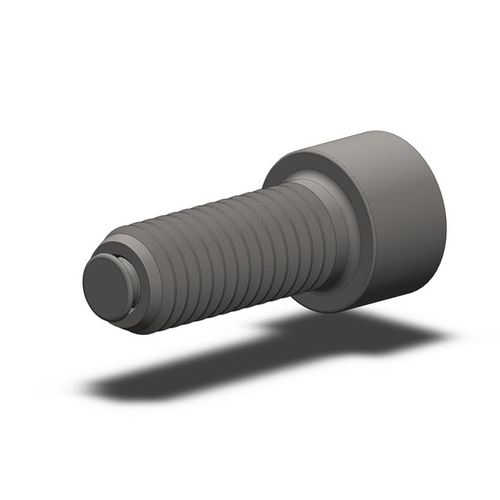

Clamping screw TSH-0375-FC-DS
thrustcylindrical headhex socket

clamping screw
clamping screw
clamping screw
Add to favorites
Compare this product


Characteristics

Applications
clamping, thrust
Head
cylindrical head
Drive type
hex socket
Materials
steel, alloy
Other characteristics
pressure, swiveling ball
Length

Min.: 1.06 in

Max.: 4.16 in

Description

These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force on to the contact area. The free floating ball design allows the thrust screw to continue to rotate while the ball remains stationary against the contact surface. Ideal for irregular shaped or contoured applications. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is held in place with a viton O-ring which keeps contaminants out and allows the ball to swivel. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately.

Catalogs

No catalogs are available for this product.

See all of Fairlane Products‘s catalogs
