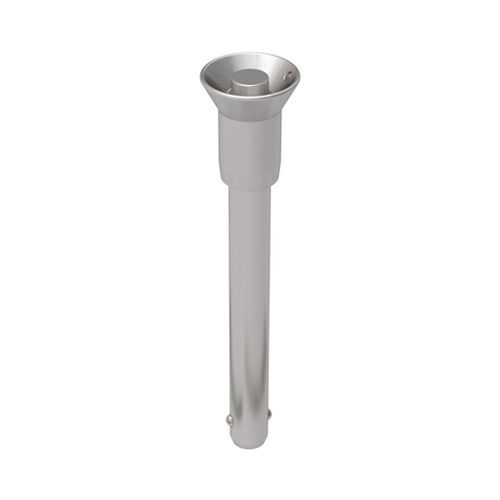

Quick-release pin with button NCCS series

stainless steelfor marine applications

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shank material is 300 series stainless steel. The handles are designed to prevent accidental release and are machined from 303 stainless steel. These pins are not supplied with stainless steel split rings. Pins in other grip lengths are available as special orders. Diameter Nominal: 1/4 in. Diameter Shaft - Max: 0.2485 in. Diameter Shaft - Min: 0.247 in. Width at Balls: 0.5 in. Length Grip: 0.289 in. Length to top of Balls: 0.29 Height Handle: 0.97 in. Diameter Base of Handle: 0.47 in. Height Base of Handle: 0.64 in. Diameter Button: 0.23 in. Diameter Handle - Rim: 0.81 in.
