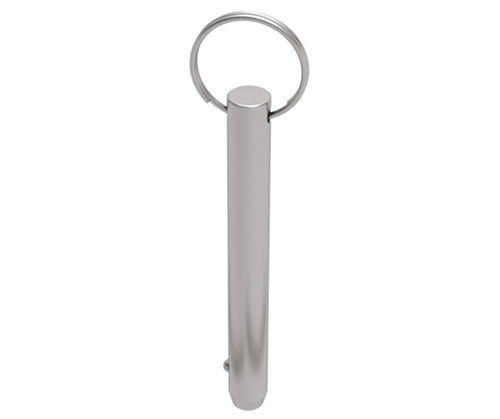

Quick-release pin with lifting ring DCS series
Add to favorites
Compare this product
Characteristics
- Options
- with lifting ring
Description
These pins have a wide range of uses in fastening, locating and alignment applications. The spring-loaded ball retracts when it is inserted or removed. Commercial drill tolerances provide clearance for the pins. The pins are made from 303 stainless steel with 316 stainless rings. The ball and spring are made from 316 stainless steel. Made in the USA. RoHS compliant. DFARS compliant. Wire rope lanyard assemblies available separately.
Diameter Shank: 3/16 in.
Diameter Ring: 1.00 in.
Length Grip: 0.5 in.
Length End to ring hole: 0.187 in.
Length Tip to top of Balls: 0.200 in.
Width Shank: 0.204 in.
Chamfer Shank: 15 Degrees.
Strength : 4 - 5
Strength : 2,740
