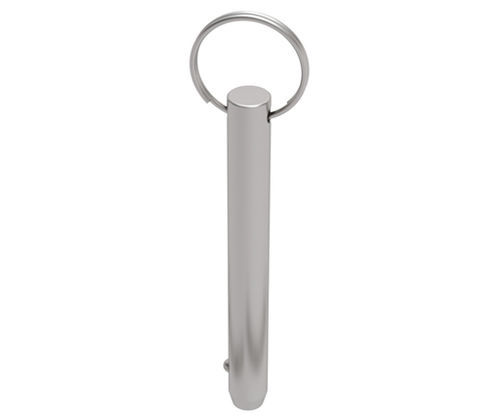

Quick-release pin with lifting ring DAS seriesheavy-load detent
Add to favorites
Compare this product
Characteristics
- Options
- with lifting ring, heavy-load detent
Description
These pins have a wide range of uses in fastening, locating and alignment applications. The spring-loaded ball retracts when it is inserted or removed. Commercial drill tolerances provide clearance for the pins. The pins are made from C1144 steel with steel split rings. The pins and rings have a zinc-plated clear chromate finish. Made in the USA. RoHS compliant. DFARS compliant. Wire rope lanyard assemblies available separately.
Diameter Shank: 3/16 in.
Diameter Ring: 1.00 in.
Length Grip: 0.50 in.
Length End to ring hole: 0.187 in.
Length Tip to top of Balls: 0.200 in.
Width Shank: 0.204 in.
Chamfer Shank: 15 Degrees.
Strength : 4 - 5
Strength : 2,420
