Vehicle commutator

for electric motorsindustry

Product overview

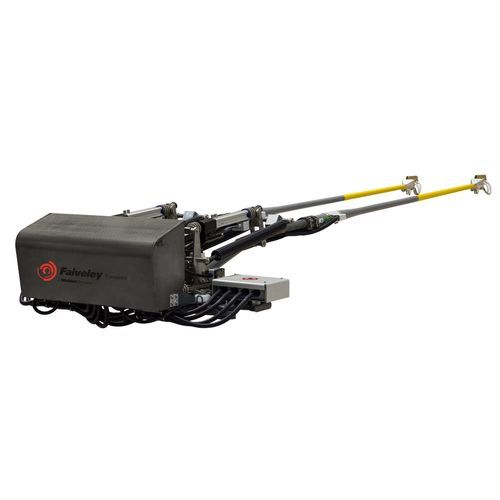

Collectors for the mining industry are designed for ecological operation of mining vehicles. The collector is driven electrically (optionally pneumatically) and connects to an overhead contact line installed on selected route sections, for example on inclines. When the collector is used, the mining vehicle is powered by an electric motor, reducing diesel consumption and CO2 emissions.

Benefits for you

• Green transportation with reduced diesel consumption
• Greater driving variability in curves compared with classic pantographs
• Operational cost savings through diesel reduction
• Smooth transition between diesel and electric power
• Extended diesel engine life and maintenance intervals
• Traction support while driving
• Decades of engineering experience in pantograph/trolley current collector design
• Improved uphill performance (higher speed with collector vs diesel)
• Extremely strong, durable composite poles
• Wide range of optional functions to suit different customer solutions
• Control software with Ethernet and diagnostic system
• Options:
  • LED light
  • Camera
  • Different current collector heads and carbon inserts
  • Different pole lengths
  • Surge arrestor

Main Parameters

• Rated current: 1 880 A / 15 min
• Rated voltage: 750–1 100 V
• Catenary distance: 700 mm
• Rod shape: Straight
• Pole length: According to customer request
• Temperature range: -30°C – 50°C
• Max. collector swivel angle: ±55°
• Height in lowered position: 600 mm
• Minimum operating height: 850 mm
• Maximum operating height: 2 700 mm
• Connecting cable: 4x Cu 120 mm²
• Weight: 381 kg
