water cleaner / diesel engine / stationary / high-pressure
base jet 125 2500-26-0-d

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

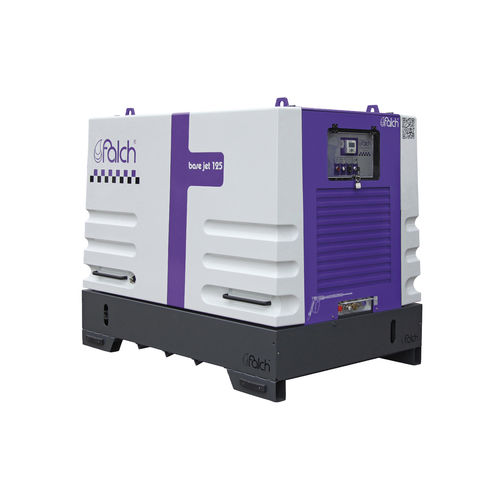

water cleaner / diesel engine / stationary / high-pressure water cleaner / diesel engine / stationary / high-pressure - base jet 125 2500-26-0-d
{{requestButtons}}

Characteristics

  • Type:

    water

  • Power source:

    diesel engine

  • Configuration:

    stationary

  • Other characteristics:

    high-pressure, with tank

  • Pressure:

    Min.: 600 bar (8,702.26 psi)

    Max.: 2,500 bar (36,259.43 psi)

  • Water output:

    Min.: 11 l/min (2.91 us gal/min)

    Max.: 26 l/min (6.87 us gal/min)

Description

operating pressure600 - 2500 bar
flow rate11 - 26 l/min
diesel engine max. power/power output, speed, idle speed, cylinder, capacity, cooling system129 kw / 125 kw, 2300 rpm, 1000 rpm, 4 cyl., 4760 ccm, water
fuel consumption under 60% load18,5 l/h diesel
power, pumping rotation speed, water inlet pressure, max. water inlet temperature125 kw, 600 rpm, 2,0 - 8,0 bar, 40 °c
standard nozzle size023 usgal/min
safety switch lack of waterinclusive
antifreeze systeminclusive
power-on time (hours/day)24
period of guarantee (months)24
water tank capacity80 l
fuel tank capacity210 l
net weight, vertical load1620 kg, -
length x width x height2240 x 1550 x 1850 mm
sound power level lpa, lwa + 1,5 db92 db
item numberg589
