cold water cleaner / three-phase / stationary / high-pressure

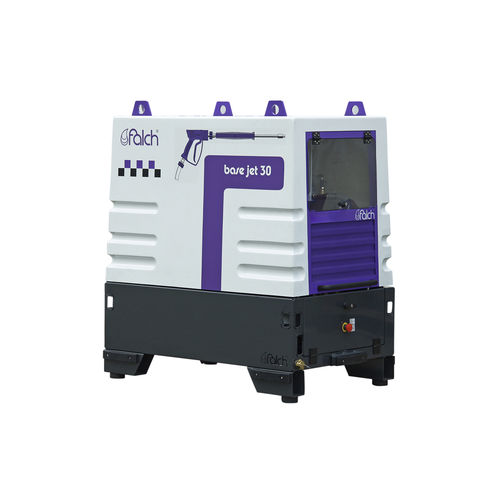

base jet 30 500-28-0-e overpack

{{requestButtons}}

Characteristics

  • Type:

    cold water

  • Power source:

    three-phase

  • Configuration:

    stationary

  • Other characteristics:

    high-pressure, with tank

  • Pressure:

    Min.: 50 bar (725.19 psi)

    Max.: 500 bar (7,251.89 psi)

  • Water output:

    Min.: 10 l/min (2.64 us gal/min)

    Max.: 28 l/min (7.4 us gal/min)

Description

operating pressure50 - 500 bar
flow rate10 - 28 l/min
water temperatureoptional
electric engine max. power/power output, speed, idle speed, cooling system36 kw / 30 kw, 1460 rpm, -, air
electrical connection/fuse, cable length400 v / 50 hz / 63 a, 5,0 m
power, pumping rotation speed, water inlet pressure, max. water inlet temperature28 kw, 940 rpm, 2,0 - 8,0 bar, 40 °c
standard nozzle size055 us gal/min
safety switch lack of waterinclusive
power-on time (hours/day)24/1
period of guarantee (months)24
water tank capacity90 l
net weight, vertical load610 kg, -
length x width x height1300 × 850 × 1400 mm
sound power level lpa, lwa + 1,5 db77 db
item numberg583
