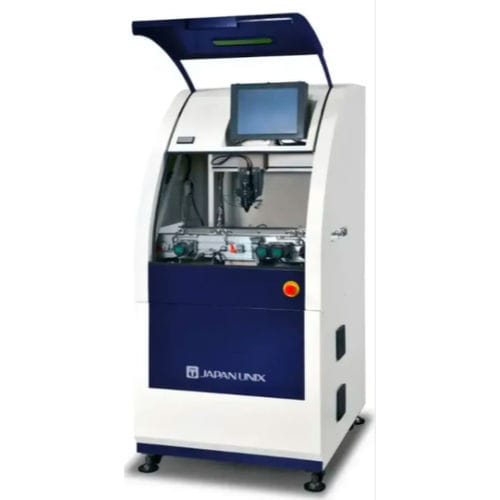

Laser soldering machine UNIX-DF203L
roboticfor PCB

laser soldering machine
laser soldering machine
Add to favorites
Compare this product


Characteristics

Technique
laser
Operating mode
robotic
Applications
for PCB
Power

20 W, 30 W, 45 W, 75 W

Description

Laser soldering - Precise soldering for micro applications Fancort offers the latest Robotic Soldering Technology using Japan UNIX is the world leader in laser soldering systems with spot sizes as small as 0.1mm. Laser makes possible what other types of soldering cannot accomplish. Fancort has a laser system in our process development lab available for sampling and process development. Laser diode with output of 20, 30, 45, or 75W Coaxial CCD camera integrated into laser head shoots image of the target point for ease of programming Ideal for extremely fine point soldering Programming robot on teach pendant or included software; program laser with control box Laser lens shielded from the outside with protective glass Custom lenses, e.g. round, doughnut, oval, square Air jet system incorporated into robot removes smoke from flux Optional nitrogen flow Desktop models with working area of 300x300mm or 400x400mm Program up to 63 waveform patterns Eight levels of energy power for each waveform Supplied with precision solder feeder or can be used with solder paste Laser spot diameter 0.4-0.6mm; 0.25mm is optional Focal length standard is 60; 30, 40, 80, 100 or 120 are optional Select from two different wavelengths: 808 or 940mm Software operated shutter Expected life span of laser is 20,000 hours

VIDEO
