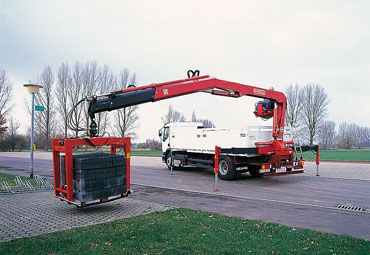

Truck-mounted crane F240ASXPboomall-terrainlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- boom
- Operating environment
- all-terrain
- Applications
- lifting
- Other characteristics
- hydraulic, compact
- Load
22,220 kg, 23,040 kg, 23,850 kg
(48,986.7 lb, 50,794.5 lb, 52,580.2 lb)- Horizontal reach
11.1 m, 13.65 m, 16.15 m
(36'05" , 44'09" , 52'11" )- Total weight
2,980 kg, 3,180 kg, 3,380 kg
(6,570 lb, 7,011 lb, 7,452 lb)
Description
The F240ASXP is a compact and powerful crane, with a lifting capacity of up to 23.85 tm and a maximum outreach of 16.15 m. Equipped with the FX800 control unit, Walvoil SD8 modular distributor and seated control station, it combines ease of use and operational efficiency. 420° rotation with rack and pinion guarantees manoeuvrability, while the non-folding behind-the-cab structure makes it ideal for specific configurations.
At the heart of the F240ASXP lies the XP – Extra Power system, which provides additional energy when needed: by reducing the speed of movement, it increases lifting capacity and allows even the most demanding operations to be completed in safety. A form of technology that combines maximum power with extreme precision, allowing the operator to reliably handle even the most complex situations.
