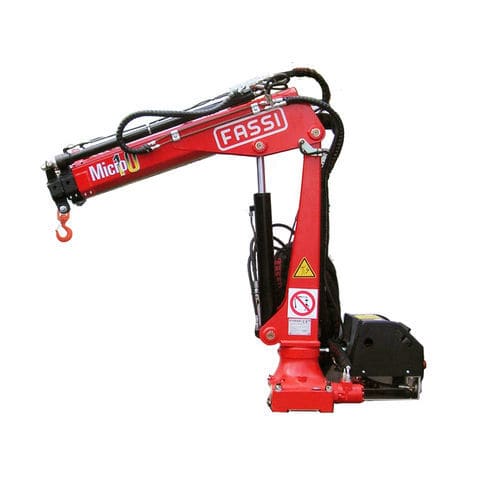

Mobile mini crane M10A series

liftinghydraulicradio-controlled

BASE - Cast iron base for ideal stress distribution and greater resistance. The absence of welds provides the crane with characteristics of exceptional duration to fatigue. (1) BOOMS GUIDE - Extension booms guide shoes, with “forced” assembly to reduce vertical and horizontal clearance, ensuring greater durability. Special guide shoes material with high sliding degree and low greasing request. PROPORTIONAL DISTRIBUTOR - Proportional distributor with single side controls. System for D.M. compliance° LIFTING MOMENT LIMITING DEVICE* - lifting moment limiting device for automatic load conditions and truck/crane unit stability control with (excluding the M10A) a pressure selector to be activated during the load check procedure of manual extensions: MMC (Micro Manual Control) system for limiting the load of manual extensions (up to a maximum of two) (2). LOAD LIMITING DEVICE** (MLC - Micro load control) - This system, replacing the lifting moment limiter device, is designed to ensure that the maximum load of 995 kg is not exceeded, thereby avoiding the obligation to install the FSC stability system and the MMC device.
