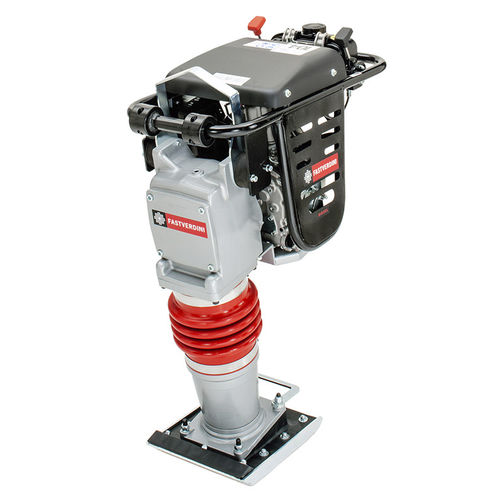

Tamping rammer RAN 6/D

Description
Heavy-duty rammer for soil compaction. Balanced and easy to handle, it provides significant compaction force and high productivity. Supplied accessories include transport trolley and lifting handle with drive roller; additional accessories are available on request.

Accessories

• Transport trolley
• Lifting handle with drive roller
• Widened foot plate
• Extended foot plate
• Raised foot plate
• Transport wheels

Specification table
Model: RAN 6/D
Model code: PFCRAN6D
Operating weight: 90 kg
Engine: Yanmar L48
Engine power: 3.5 kW (4.8 Hp)
Foot plate width: 28 cm
Foot plate length: 32 cm
Stroke: 54 mm
Blows/min (approx): 670
Compaction force: 20 kN
Compaction depth: 680 mm
Forward speed: 12 m/min
Output: 160/180 m2/h
Fuel consumption: 1.3 L/h
Fuel tank capacity: 2.5 L
Stage V: No

Characteristics / Technical specifications

• Model: RAN 6/D
• Model code: PFCRAN6D
• Operating weight: 90 kg
• Engine: Yanmar L48
• Engine power: 3.5 kW (4.8 Hp)
• Foot plate width: 28 cm
• Foot plate length: 32 cm
• Stroke: 54 mm
• Blows/min (indicative): 670
• Compaction force: 20 kN
• Compaction depth: 680 mm
• Forward speed: 12 m/min
• Output: 160/180 m2/h
• Fuel consumption: 1.3 L/h
• Fuel tank capacity: 2.5 L
• Stage V: No
