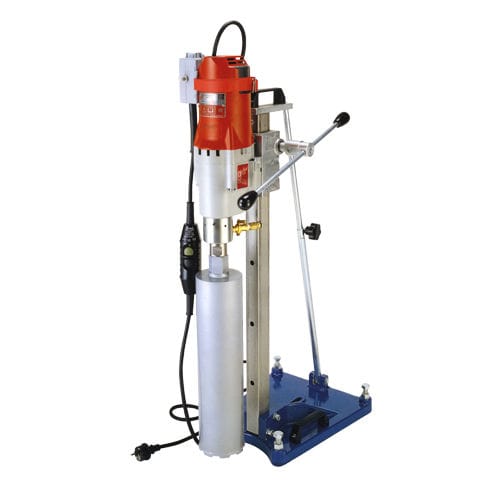

Electric core drilling machine CL95
telescopic column

Electric core drilling machine - CL95 - Fast Verdini Srl - telescopic column

Add to favorites

Compare this product

Go to the Fast Verdini Srl website for more information

Characteristics

Type

electric

Other characteristics

telescopic column

Drill diameter

Min.: 20 mm
(0.79 in)

Max.: 200 mm
(7.87 in)

Rotational speed

Min.: 320 rpm
(2,010.62 rad.min-1)

Max.: 980 rpm
(6,157.52 rad.min-1)

Description

Description
Machine mounted on an aluminium frame, sturdy and lightweight (frame weight 13 kg, gearmotor weight 12 kg). Features telescopic reinforcement and a tilting column with a fixed position for 45° drilling. Optionally available with vacuum-pump fixation on request. Fitted with a PRCD 30 mA switch and a clutch.

Accessories

Conveyor for water collection during core drilling
Device for mounting the core drill to scaffolding

Summary table
Model: CL95
Model code: PFCCL095W
Drilling diameter mm: 20 – 200 (250 on request)
Motor power Watt: 2600
Voltage Volts: 230
rpm (rev/min): 320 / 630 / 980
Crown connection: 1'1/4
Weight Kg: 25

Characteristics / technical specifications

Model: CL95
Model code: PFCCL095W
Drilling diameter mm: 20 – 200 (250 on request)
Motor power: 2600 Watt
Voltage: 230 Volts
Speed (rpm): 320 / 630 / 980
Crown connection: 1'1/4
Total weight: 25 Kg
Frame weight: 13 Kg
Gearmotor weight: 12 Kg
Tilting column with fixed position for 45° drilling
Equipment: PRCD 30 mA switch, clutch
