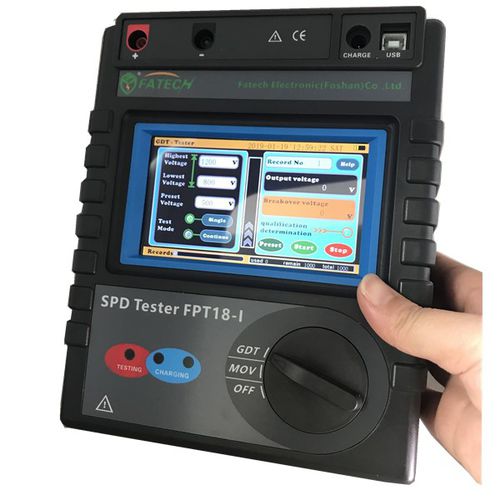

Voltage tester FPT18-I

leakage currentsurge protection devicewith touchscreen

1.Description Test devices helps you to guarantee lightning protection products quality, which including multimeters, varistor testers, impulse discharge current generators, we also can design and produce test devices according to customer's requirements. 2. Introduction FPT18-I series intelligent lightning protection component tester is used to measure the performance parameters of various metal oxide varistors (MOV) and Gas discharge tubes (GDT). The tester has high-voltage short-circuit protection, over-current protection, high-voltage presetting, range adjustment, self-inspection function, measurement range of spark voltage U1mA: 0~2000V, measurement range of leakage current: 0~ 499.9μa, good repeatability. 3. Characteristics 1) Finger touch color screen; 2) MOV& GDT tester; 3) Fully automatic shift 3) Test data storage and checking; 4) Qualified value determination; 5) Test data reading through USB; 6) Battery charger type. 4. Electrical Parameters 1) Battery：DC 7.2V 2600maH rechargeable lithium battery (standby for more than 3 hours continuously) 2) Measuring way：Dc voltage drop method 3) Shift: Fullyautomatic shift 4) Display mode: Fingertouch color screen 5) The LCD size: 108 mm * 65 mm 6) Size: 212 mm * 175 mm * 76 mm 7) Mass quantity：1200 g 8) The test line: Red 1 meter, black 1 meter; Two alligator clips and two watch pens 9) Surge current: 2500A 10) Over voltage protection: Yes 11) Overflow shows: The symbol "9999.99" indicates when the over range occurs
