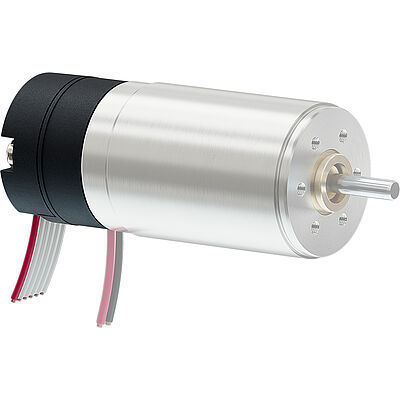

Incremental rotary encoder IEX3 seriesmagneticdigital outputDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- magnetic
- Output signal
- digital output
- Supply voltage
- DC
- Applications
- industrial, for motors
- Other characteristics
- compact, small-size, 3-channel
- Incremental encoder résolution (pulses per revolution
Min.: 16 unit
Max.: 4,096 unit
- Housing diameter
16 mm
(0.63 in)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
- Index channel
- Small size
- High signal quality and accuracy
- Different resolutions
the IEX3 offer a high resolution and positional accuracy that typically reaches 0.3°. Equipped with a wide voltage range – both 3.3 V for battery-powered applications to 5 V are possible – and a temperature range of -40 to 100 degrees Celsius, the encoder is both flexible and robust. The IEX3 (L) is available with or without a line driver and is both extremely compact and easy to maintain – ideal for use in combination with the new FAULHABER SXR and GXR motors.
Catalogs
FAULHABER nmotion 1/2026
48 Pages
Encoders - Series IEX3- L
2 Pages
