Rear-loader waste collection vehicle VARIOPRESS URBAN

dieselwith compactor

Short description
The FAUN VARIOPRESS URBAN is a rear-loading refuse collection vehicle designed for urban collection routes. Its space-saving body and medium-chassis dimensions provide a compact footprint while offering a body volume of 9 to 12 m³ and compatibility with MBG 60 l to 1,300 l containers. The URBAN model is suitable for organic, light fraction, residual waste, paper and light bulky waste collection when equipped with the appropriate BARLIFT.

Good reasons to buy original

• Container sizes supported: MBG 60 l to 1,300 l
• Body volume: 9 to 12 m³
• Body width: 2.2 m
• Suitable for chassis from 12 t GVW

Highlights & available options

• Available in two different body heights
• Minimum wheelbase from 3,260 mm
• Compatible with BARLIFT bin lifting system
• Small turning radius for tight urban streets
• Compact design with maintained payload capacity
• Narrower, lower and lighter than the large VARIOPRESS
• Proven VARIOPRESS compaction technology

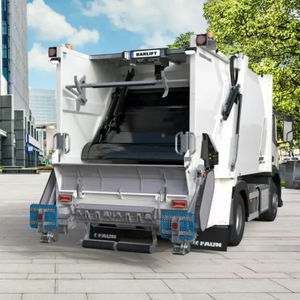

BARLIFT
BARLIFT integration is available for the VARIOPRESS URBAN, allowing automated lifting of supported MBG containers without modification of core equipment features.

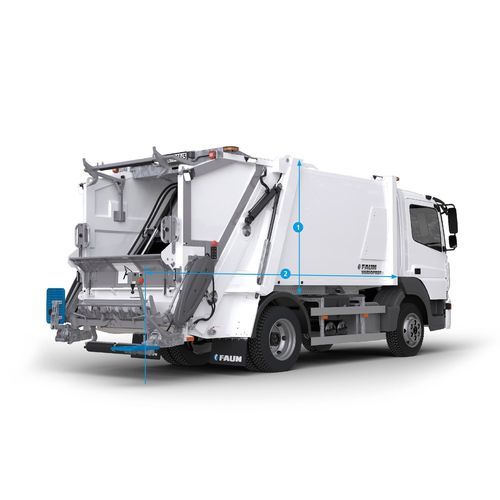

Technical specifications

• Body height: 1,899 mm or 2,099 mm
• Body length: 4,801 mm to 6,301 mm
• Body volume: 9 to 12 m³
• Body width: 2.2 m
• Container sizes supported: MBG 60 l to 1,300 l
• Suitable for chassis from 12 t GVW
• Wheelbase: from 3,260 mm
• Available in two heights
