5-axis CNC machining center FM13
horizontalwith rotary tabledouble table

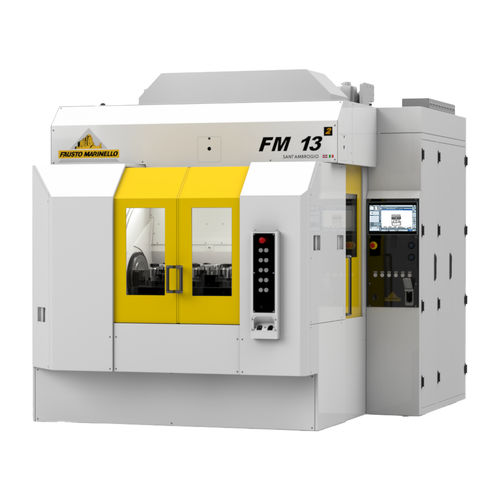

5-axis CNC machining center - FM13 - FAUSTO MARINELLO - horizontal / with rotary table / double table
5-axis CNC machining center - FM13 - FAUSTO MARINELLO - horizontal / with rotary table / double table
5-axis CNC machining center - FM13 - FAUSTO MARINELLO - horizontal / with rotary table / double table - image - 2
5-axis CNC machining center - FM13 - FAUSTO MARINELLO - horizontal / with rotary table / double table - image - 3
5-axis CNC machining center - FM13 - FAUSTO MARINELLO - horizontal / with rotary table / double table - image - 4
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Structure
with rotary table, double table
Spindle mount
HSK A-63
Number of tool stations
120 tools, 80 tools, 42 tools
Applications
for the automobile industry, for molds, for the aerospace industry, for medical applications, for vehicles
Other characteristics
high-productivity, high-precision, with automatic tool changer, automated loading/unloading
X travel

630 mm
(24.8 in)

Y travel

500 mm
(19.69 in)

Z travel

400 mm
(15.75 in)

Rotational speed

Max.: 20,000 rpm
(125,664 rad.min-1)

Min.: 1 rpm
(6 rad.min-1)

Power

32 kW
(43.51 hp)

Work feed X-axis

75 m/min

Work feed Y-axis

75 m/min

Work feed Z-axis

80 m/min

Tool-changing time

3 s

Description

EFFICIENCY Highest production and machining precision, fully available machining area, 3” seconds tool change, pallet changer with c and w axes (5th axis) optional, single spindle series with optional single or double rotary table QUALITY Record-breaking compactness, closed bedframe, box-in-box design, tools control system, maximum accessibility to machining and loading/unloading area EASE TO USE Extremely accurate pallet positioning, clamping equipment with direct fluidic inlet, ease and safe fixture changeover, easy cleaning of all internal areas FLEXIBILITY Customized solutions with highly efficient and flexible automation, fully customizable control panel, extremely low space requirements Technical file: Spindles 1 Torque (per spindle) 80 Nm 4th axis diameter Ø620×880 mm Options TOOL ATTACHMENT FLUSHING IN THE STOCKER AREA TOOL IDENTIFICATION SYSTEM MIST SUCTION FOR MACHINING WITH COOLANT HIGH PRESSURE PUMP COOLING UNIT TO CONTROL COOLANT TEMPERATURE ELECTRONIC HANDWHEEL DRILLTIP PRESENCE PROBE CONTROL SYSTEM GAGE 3 COLOR LIGHT COLUMN OIL SKIMMER LASER TOOL BREAKING MONITORING SYSTEM PRESETTING LASER FOR TOOLS FIXTURE WASHING SYSTEM CHIPS MANAGEMENT PREMIUM PACKAGE
