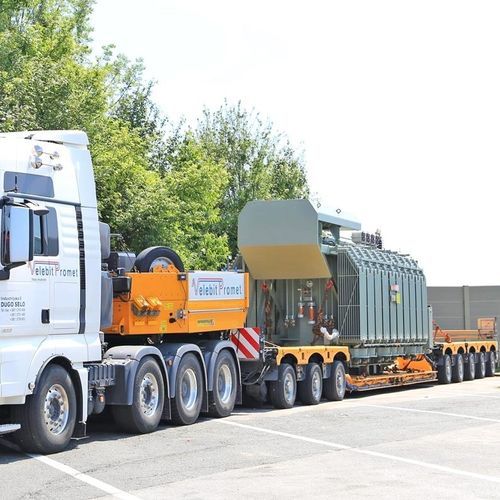

Flatbed semi-trailer CombiMAX

more than 6 axlestowedheavy-duty

The CombiMAX is a unique, far-reaching lowloader concept, the idea of which is based on the variety of combinations with standardised components. The principles of modularity and flexibility are applied to the trailers and step frame semi-trailers for medium to heavy payloads of between 50 and 250 tonnes. Technical advantages and new items The CombiMAX can be tailored individually to every transport requirement. New components and methods have been developed especially for this concept. The bogies are available with pendle axles and all of them have the same interface. The combination of three coupling systems is also new: •Universal coupling head with bolt coupling •Hook adaptor •Installable telescopic centre beam ("Add-On Beam") The combination of these three systems enables versatility, speed and efficiency with regard to the customer’s widely varying transport requirements. Thanks to the universal coupling head, the direct connection of components of different heights (tyres) and widths is also easily possible. This creates countless possibilities and each individual component of the modular CombiMAX construction kit can be used more frequently and accordingly be amortised faster. Total investment in the vehicle fleet is thus considerably reduced. The maximum technical axle load of the different types of bogies was defined on the basis of a minimum speed of 30 km/h. This leads to a considerable optimisation of the dead weight compared to known modular axle lines. Despite the weight optimisation, an enormous bending moment across all bogie variants is achieved by the use of high-strength fine-grained steels and a new frame design.
