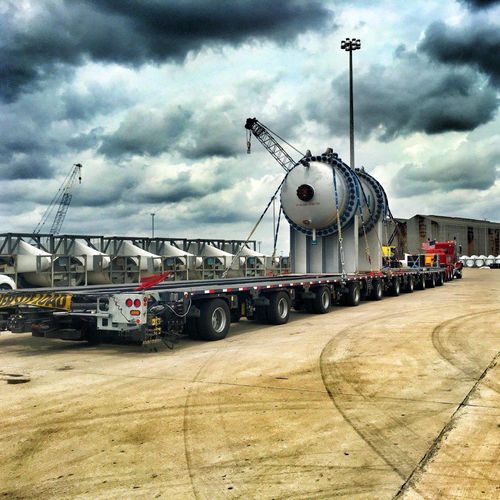

The Faymonville DualMAX is a modular heavy haul platform trailer that is widenable under load (lift&shift system). This modular trailer was developed in order to meet the specific requirements of the trucking & hauling industry in North America. It fully complies with U.S. and Canadian regulations allowing a maximal payload thanks to its adapted dimensions.
The following features ensure maximum transport efficiency and contribute to transport safety:
Axles are widenable under load from 14’ to 20’ in a fast, easy and safe way
Steering system remains untouched - no disconnecting of any part
Very strong and torsion resistant chassis with high point load capacities on central beam and outer frames
Light weight (approx bout 13,200 lbs/line of tare weight)
The folded frame is less than 8’ wide and 8’ tall thus return transports are easily possible on conventional lowbed or flatbed trailers.
Load per axle line 52,900 lbs at 50 mph
Extremely high points loads of 40,000 lbs. can be applied over each axle bearing
