3-axle semi-trailer PrefaMAX
for precast concreteflatbedextendable

3-axle semi-trailer
3-axle semi-trailer
3-axle semi-trailer
3-axle semi-trailer
3-axle semi-trailer
3-axle semi-trailer
3-axle semi-trailer
Add to favorites
Compare this product


Characteristics

Number of axles
3-axle
Products carried
for precast concrete
Type
flatbed
Other characteristics
extendable, heavy-duty, with hydraulic suspensions
Payload

Min.: 7,700 kg (16,975.59 lb)

Max.: 12,000 kg (26,455.47 lb)

Description

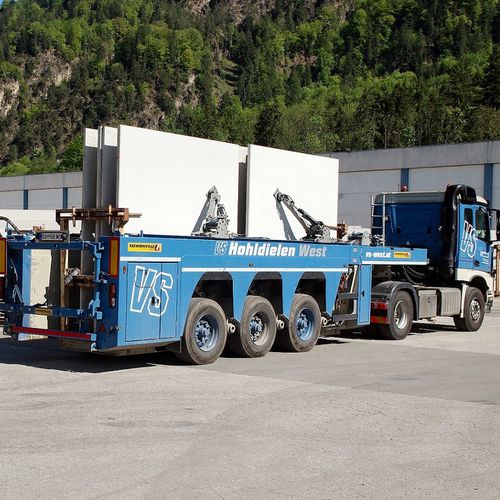

The Faymonville PrefaMAX is an inloader for the transport of precast concrete elements. Built on 3 axles, the standard metallised PrefaMAX semi-trailer impresses with high load security and optimal operational efficiency in the transport of precast elements. With a total width of less than 2.55 m the PrefaMAX lies within the norms for standard transport, with the advantage that no costs arise for escorts and special permissions. Description Suspension The PrefaMAX Inloader is equipped with hydraulic or pneumatic independent suspension (stub axles on axle balancers). Variants of the PrefaMAX inloader In addition to the standard version the PrefaMAX is available in different special designs: •Light Version (+/- 2,000 kg lower dead weight) •Version 10200 with especially long loading space •Special version for Norway (distance from king pin to centre of axles = 8,150 mm) •Special version for Sweden (distance from king pin to centre of axles = 9,100 mm) •Extendable, loading space can be extended by an additional 4,000 mm Equipment & accessories The PrefaMAX Inloader can be tailored individually to the transport requirements. Here are just a few of the equipment options: •Parallelogram door •Hydraulic pallet locking •Flexible clamping system (operable from the ground) •Operation by remote control

VIDEO

Catalogs

PrefaMAX
PrefaMAX
16 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
