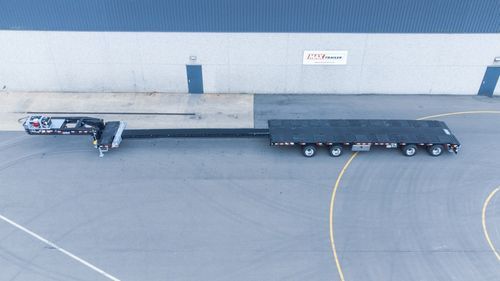

Low-loader trailer MAX110 SD140

air-suspensionplatformgooseneck

Overview
Designed for heavy-haul operations, the MAX110 SD140 is a lowboy-style trailer with a compact 2+2 axle layout. It features a steerable, extendable step-deck and a payload capacity up to 140,000 lbs, combining maneuverability and high load capability.

Key product highlights

• Compact and versatile 2+2 axle configuration
• Payload capacity up to 140,000 lbs
• Steerable step deck with extendable platform
• Overall width: 100"
• Platform height: 38.2"
• Axle stroke: 9.5"
• 45° steering angle for improved cornering
• 126" rear swing clearance gooseneck
• Fully 2-axle Joe Dog capable
• User-oriented handling and intuitive operation

Typical applications

• Construction
• Heavy and industrial transport
• Lifting equipment transport
• Agriculture
• Cranes and equipment
• Finished parts and components

A fully equipped toolbox – useful features to facilitate your daily work

• First two axles friction-steered and liftable
• Air ride suspension with lifting and lowering valve
• Extendable platform up to 67'-7"
• Third and fourth axles hydraulically steered and adjustable
• Hydraulic gooseneck with lift and lowering function
• King pin steering with additional steering override
• Cable remote control for auxiliary steering
• Centralized greasing point on the gooseneck
• Chain hooks and sand-painted loading platform
• Mechanical rear landing legs with preparation for hydraulic landing gears
• Multiple lashing rings and preparation for extendable outriggers
• Pneumatically actuated extension lock
• Safe access to the loading area
• Sheem plates for platform extension
• Spare tyres stored under the loading platform
• Widenable aluminum ramp connection at the rear with preparation for hydraulic flip ramps

Smart options

• Alcoa aluminum rims
• Rubber covering with high friction coefficient (70%)
• Self-contained pony motor
• Stainless-steel tool boxes under the loading platform
• Tire inflation system
• Wireless remote control for auxiliary steering

Notes

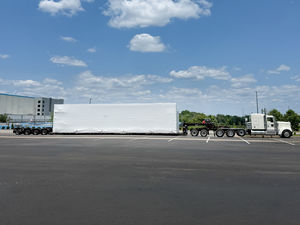

Equipped with standard trailer technologies to support transport of machine parts, e-houses, lightweight transformers and components from industrial plants.

Technical specifications

• Model configuration: 2+2 axle
• Payload capacity: up to 140,000 lbs
• Overall width: 100"
• Platform height: 38.2"
• Axle stroke: 9.5"
• Steering angle: 45°
• Rear gooseneck swing clearance: 126"
• Extendable platform length: up to 67'-7"
• Steering: first two axles friction-steered and liftable; third and fourth axles hydraulically steered and adjustable
• Suspension: air ride system with lifting and lowering valve
• Auxiliary steering: cable remote control (optional wireless)
• Preparation for: hydraulic landing gears, extendable outriggers, hydraulic flip ramps
