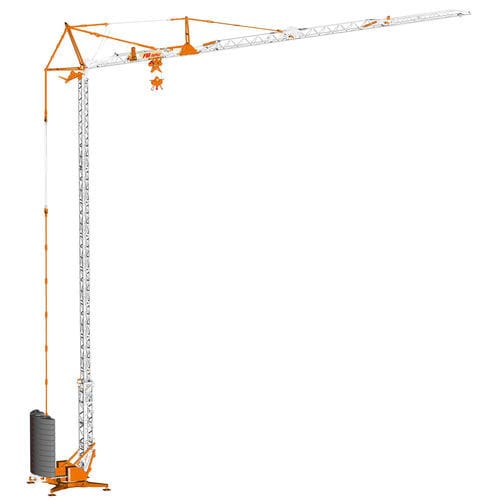

Telescopic jib crane GX 251

for construction equipmentlifting

Nothing is impossible thanks to the GX251! The most compact self-erecting crane ever with a footprint of 7 meters. The ideal lifting solution for building contractors who often work on construction sites with very little space or access difficulties. A small crane only apparently seen the 24 meters of arm and 24 meters of height that can be reached by tower telescope. First class performance also in terms of capacity: 1000/4000 kg load with horizontal arm, 1000/2000 kg instead when working at 30 °. Maximum work versatility for the crane that adapts to each site. • Jib and mast fully galvanized • Length in transport configuration under 7 m • Reduced erection volumes • Three/single-phase supply • Inverter controlled hoisting, slewing, trolley, jib opening and telescopic action movements • Three speed hoists for trolley and slewing, three speed hoist for hoisting with automatic 4th speed • Height under hook with horizontal jib m 10 - 12 - 14 - 16 - 18 - 20 - 22 – 24 • Work with folded jib both in horizontal and luffed position • Limit switches to work with folded jib at 19.5 and 13.5 m with automatic setting • Load with luffed jib kg 1000 kg at the jib end at 34.7 m and 2000 kg max • Maximum load in 2-falls kg 2000 • Maximum load in 4-falls kg 4000 • Integrated self-ballasting device • Shaped carter, equipment and electric cubicle • Reduced slewing radius (only 1.70 m) contained inside the bearing legs • Possibility to widen the slewing radius to reduce ballast • PROGRAMMABLE LOGIC CONTROLLER (PLC) to control all the safety parameters and devices of the crane
