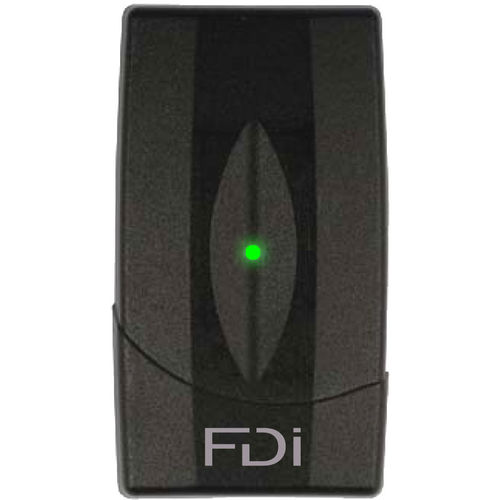

Proximity reader FD-020-080

■Dimensions (L x H x D): 78mmx43mmx17mm ■Power supply : 12VCC (supplied by the controller) ■Current: 30mA ■Wire gauge: 3 wires /100m max ■Reading distance: up to 30mm ■Frequency: 125Khz ■Operating Temperature: -10 c to +50 ° The mullion reader is a proximity reader 125 KHZ working PTTiiil Passan Premium and Transit controllers. It sits directly on a wall without embedded box. It offers a significant reading distance of 3 cm. Functioning: A two-color led indicates the operating status of the reader: red to indicate that the reader is in use and green when the door is controlled and give the permission to enter.
