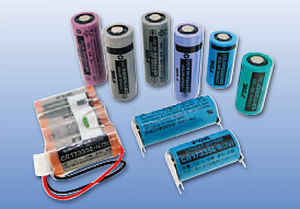

Energy meter battery CR17
lithium-manganese dioxideCRhigh-temperature

Energy meter battery - CR17 - FDK - lithium-manganese dioxide / CR / high-temperature
Energy meter battery - CR17 - FDK - lithium-manganese dioxide / CR / high-temperature
Add to favorites
Compare this product
Go to the FDK website for more information

Characteristics

Type
lithium-manganese dioxide
Configuration
CR
Applications
for automotive applications, Alarms, low maintenance, for alarm systems, high-temperature, IoT, for security systems, for energy meters
Connection type
double terminal
Standard
UL
Other characteristics
high-performance, maintenance-free, high-reliability, long life, primary, extended temperature range, spirally wound
Length / diameter

Max.: 17.4 mm
(0.7 in)

Min.: 17 mm
(0.7 in)

Height

Max.: 50 mm
(2 in)

Min.: 34 mm
(1 in)

Weight

Max.: 28 g
(0.99 oz)

Min.: 17 g
(0.6 oz)

Description

Features Spiral electrode structure ensures high-rate current discharge. Low self-discharge rate and long cell life. Self-discharge rate : less than 0.5% per year at room temperature. Usable over wide temperature range. Operational temperature range : -40°C to +85°C (-40°F to +185°F ) Consult with FDK when using batteries at temperatures exceeding -20°C to +60°C (-4°F to +140°F ) range. UL recognition (File No. MH13421) Applications Water, Gas and Electricity meters Fire alarm / Gas alarm Car electronics (ETC, Emergency call system, etc) Others The preferred usage for these models includes the addition of external attachement wires or tab-type connectors in the specification.
