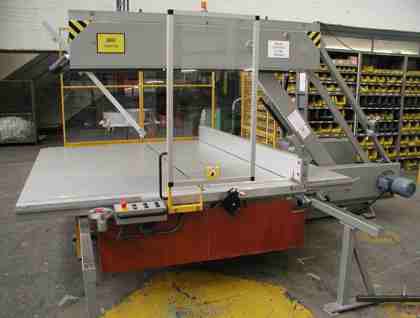

Band-knife cutting machine V 24

for PVCCNCvertical

The manual combined vertical and angle cutting machine V 24 is equipped with a manually movable sliding table. Thus, the material to be cut has to be moved along the bandknife. The cross-welded bandknife construction allows for cutting in both forward and backward movement. The material is placed against the right side fence and is moved via handwheel with ratchet according to the desired layer thickness. The adjustment is made in the range of 3-90 mm (0.12”-3.54”) with increments of 1 mm (0.039”). The tilting of the cutting unit also allows for angle cutting of 0°-30° to the left and of 0°-20° to the right.
