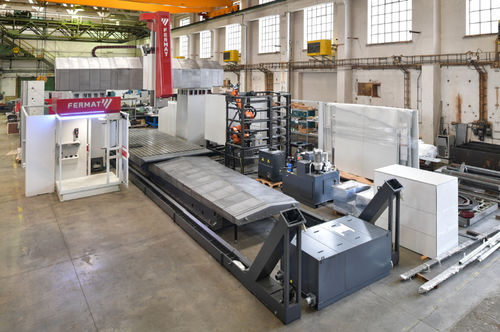

5-axis CNC milling machine FPverticalwith moving tablebridge
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- bridge, with moving table
- Spindle mount
- HSK-100, SK50
- X travel
4,500 mm, 5,500 mm, 6,500 mm, 8,500 mm
(177 in, 217 in, 256 in, 335 in)- Rotational speed
5,000 rpm, 6,000 rpm
(31,416 rad.min-1, 37,699 rad.min-1)- Power
43 kW, 53 kW, 60 kW, 77.9 kW
(58.46 hp, 72.06 hp, 81.58 hp, 105.91 hp)
Description
A bridge-type machine with movable table, adjustable according to the dimensions of the workpiece.
Machine with a milling headstock
Ram travel up to 1 550 mm.
Equipped with movable table.
Great variety of optional accessories and milling heads.
Max. Torque Heidenhain or SIEMENS CNC (S1/S6) - Nm - 917/1274; 1591/2338
