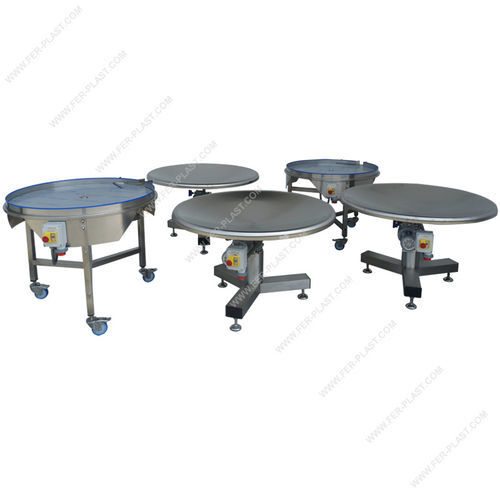

Motor-driven rotary table TRA series

horizontalfor packaging linesfor the food industry

Rotating tables for product accumulation in stainless steel. Available in concave, convex, and flat versions. To be installed at the exit of packaging machines and sealers. ACCUMULATION ROTATING TABLE IN STAINLESS STEEL AISI 304 The rotary table of accumulation is generally used in the final part of the packaging lines and facilitates the discharge of the packs, facilitating the sampling operations by the operator. The stainless tables are available with rotating table diameter from 800 mm to 1400 mm and exist in concave or convex version (ideal for bags and products that are accumulated) and flat (ideal for bottles, cans and products that can spill). The tables are supplied with adjustable feet up to 40 mm. On request, it is possible to have wheels with brakes. Edges and sides stainless steel version The flat stainless steel version is equipped with containment rod while the concave tables do not have containment systems as the products accumulate in the center. The models in flat version can be equipped with double-rod containment, closed side with height 50 cm, exit slide, load system for incoming products, diverter for outgoing products alignment, diverter for incoming products. Model: Turntables in stainless steel Table top diameter: 800-1000-1200-1400 mm Variable speed: 4 to 9 rpm/min Steel structure with adjustable feet Three phase motor with magnetothermal switch and emergency stop Installed power: 0.18 kW Power supply: 380V three-phase Standard height of the top with adjustable feet: 810 mm (+/- 40 mm) Construction to CE standards ACCESSORIES for flat rotating tables: The rotary tables can be equipped with different accessories to create zones of accumulation and sorting of the products at the end of the production line: R1: steel worktop for the connection between the tape loading conveyor and the rotating table PC1: steel loading plane for the positioning of blocks of flasks, bottles and containers and the multiple load. DV1: diverters-aligners outbound from the rotary table for conveying the containers from the table to a conveyor belt. RE1: adjustable diverter for incoming products on the table (the incoming product finds no obstacles). On request: Rotating table diameter mm. 900 Table with non-standard height Wheels with brake Pivoting stainless steel wheels with brake
