Not specified tipping bucket FP-7 series

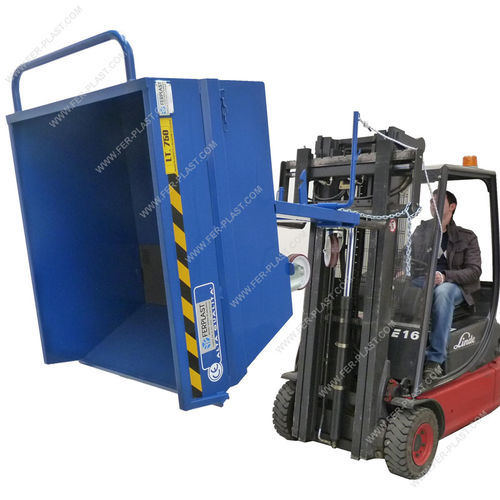

Tipping containers in steel sheet painted watertight, with the base fork mounted for lifting with a forklift. They are supplied in series with settling tank, filter sheet for the separation of liquids or solid substances and cap for the discharge of liquids. The reversal is automatic and is done via the release lever. A rope is used to activate the lever directly from the cab of the truck and then to operate in maximum security. All containers are equipped with wheels for manual handling. On request they can be equipped with feet. MODEL | Capacity (Lt.) | Length P2 | Length Tot P1 | Width L | H without wheels H1 | H with wheels H2 | H with wheels H3 | Tare without wheels | Max load FP-748 | 280 | 720 | 930 | 750 | 695 | 850 | 740 | 75 Kg | 580 Kg FP-750 | 300 | 1000 | 1245 | 870 | 510 | 665 | 530 | 88 Kg | 600 Kg FP-751 | 500 | 1130 | 1490 | 975 | 655 | 875 | 715 | 138 Kg | 1000 Kg FP-752 | 750 | 1290 | 1575 | 1070 | 745 | 965 | 770 | 161 Kg | 1350 Kg FP-753 | 1000 | 1400 | 1680 | 1070 | 900 | 1140 | 940 | 183 Kg | 1500 Kg FP-754 | 1300 | 1400 | 1680 | 1320 | 900 | 1140 | 940 | 238 Kg | 1800 Kg FP-756 | 2300 | 1600 | 1780 | 1785 | 1115 | 1490 | 1245 | 390 Kg | 2000 Kg Optional: - Cover lid: On request can be made cover lid for buckets. - Secure system: controlled tipping with hydraulic shock absorber of containers that eliminates the risks related to a reckless action of tipping of container. With the Secure System working in maximum security. Warning: the buckets FP-754 from 1300 liters and FP-756 from 2300 liters, given the size and weight must be mounted two pistons "Secure System". - Color: the standard color for buckets is blue. On request you can make buckets painted of different colors, indicating the RAL code and checking with our staff the feasibility. Delivery times for special buckets are about 2 weeks. - Watertight steel sheet construction - Forklift base for lifting - Automatic reversal with release lever - Manual handling with wheels (feet optional) - Settling tank and filter sheet included - Cap for liquid discharge - Capacity range: 280 to 2300 liters - Optional cover lid and Secure System (hydraulic shock absorber) - Standard color: blue (other RAL colors on request)
