Fastening strap K304 series

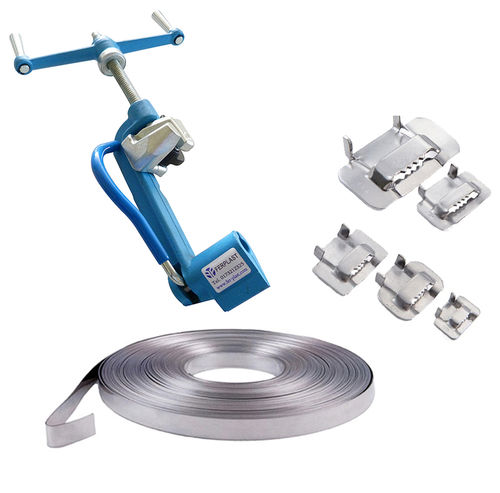

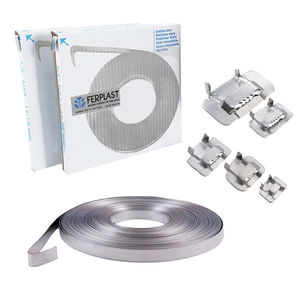

AISI 304 Stainless Steel Strapping Kit Stainless steel strapping is fireproof, UV-resistant, with a working temperature of -80° to +538°C and is used in environments exposed to particular weather conditions such as rain, humidity, saline environments. At the time of use, the operator unwinds from the roll a certain length of band suitable for the type of fastening to be realised, inserts the relevant clamp and by means of the special tensioner realises the fastening. The kit consists of: - No. 1 Universal tensioner FP S 262 Tensioner suitable for strap widths from 6.4 to 19 mm. Assemble the tensioner by screwing the handwheel around the screw pin. Insert the seal into the strap and wrap the product to be strapped. Tension the strapping by hand. Hook the tensioner onto the strapping and turn the handwheel until the desired tension is reached. Push the front lever of the turnbuckle forward to cut the strapping. Fold the strapping flap back on itself and finally close the seal flaps using a hammer. MODEL: FP S 262 Strapping width: from 6.4 mm to 19 mm Maximum tension: Kg. 1100 Handwheel tensioning Built-in cutting lever Painted with corrosion-resistant epoxy blue Weight: Kg. 1.8 - No. 1 AISI 304 stainless steel strapping coil - size of your choice This version of strapping has a thickness of 0.50 to 0.70 mm and is by far the most widely used in the construction, telecommunications, agriculture, mining, packaging, photovoltaic, wind, nuclear, waste-to-energy, shipbuilding, railway, gas water disposal, electricity, waste disposal, hardware and DIY sectors. MODEL: FX-6-30-304 Width: 6.35 mm (1/4") Thickness: 0.50 mm (0.020") Average Breaking strength: 175 Kg (386 lbs) Reel length: 30 m (100') Weight: 0.7 Kg (1.5 lbs) - No. 1 box of AISI 304 stainless steel seals - size of your choice Stainless steel straps can be secured with seals of a size equal to the width and thickness of the strapping used. MODEL: FP0G Width: 6.35 mm (1/4") Thickness: 0.50 mm (0.02") Average Breaking strength: 175 Kg (386 lbs) Box weight: 0.2 Kg (0.44 lbs) Pieces per box: 100 Kit consisting of universal tensioner, strapping and AISI 304 stainless steel seals. Technical Specifications / Features: - Fireproof and UV-resistant stainless steel strapping - Working temperature: -80°C to +538°C - Universal tensioner FP S 262 for 6.4 to 19 mm straps - Maximum tension: 1100 Kg - Handwheel tensioning and built-in cutting lever - Corrosion-resistant epoxy blue finish - Strapping coil thickness: 0.50 to 0.70 mm - Available widths: 6.35 mm, 9.5 mm, 12.7 mm, 15.8 mm, 19.05 mm - Reel length: 30 m (100') - Seals matched to strap width and thickness
