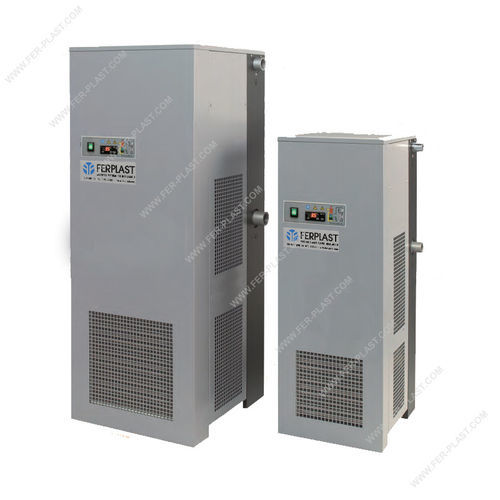

Dry air dryer FPES

aircompacthigh-performance

Refrigeration dryers to dry the air in output from the compressors. Compliant ISO 8573.1. FPES HIGH TEMPERATURE DRYERS The FPES dryers allow to dehumidify and purify the compressed air used for the power supply of the pneumatic equipment increasing performance and decreasing the risks of contamination, for example, of the food during packaging. They consist of the radiator unit, pre-filter and dryer. The dryer works with a heat exchanger, with copper pipes and aluminum cooling fins, a pre-filter equipped with automatic condensate drain, and the heat exchanger module made entirely of aluminum with patented design. Thanks to the vertical structure occupy little space, they also work in extreme operating conditions (up to 50 °C ambient and 100 °C input) and are designed to allow a high energy saving. Allow to treat the compressed air according to high quality standards, according to ISO 8573.1. The dryers are qualified by class 5 for the residual moisture and class 3 for the maximum concentration of solid contaminants. MODEL | Load | Attach | Power supply | Dimensions (AxBxC) | W FPES 5 | 550 l/min - 33 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 30 kg FPES 8 | 850 l/min - 51 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 31 kg FPES 12 | 1200 l/min - 72 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 33 kg FPES 18 | 1800 l/min - 108 m³/h | G 1" BSP-F | 230 V - 1 Ph | 410x465x1130 mm | 50 kg FPES 23 | 2300 l/min - 138 m³/h | G 1" BSP-F | 230 V - 1 Ph | 410x465x1130 mm | 51 kg FPES 30 | 3100 l/min - 186 m³/h | G 1.1/4" BSP-F | 230 V - 1 Ph | 510x515x1240 mm | 61 kg FPES 40 | 4000 l/min - 240 m³/h | G 1.1/4" BSP-F | 230 V - 1 Ph | 510x515x1240 mm | 66 kg FPES 55 | 5500 l/min - 330 m³/h | G 1.1/2" BSP-F | 230 V - 1 Ph | 560x595x1400 mm | 75 kg FPES 60 | 6200 l/min - 372 m³/h | G 1.1/2" BSP-F | 230 V - 1 Ph | 560x595x1400 mm | 84 kg FPES 80 | 8100 l/min - 486 m³/h | G 2" BSP-F | 230 V - 1 Ph | 710x775x1500 mm | 132 kg FPES 100 | 10500 l/min - 630 m³/h | G 2" BSP-F | 230 V - 1 Ph | 710x775x1500 mm | 138 kg The data in the table refer to the following conditions: room temperature 32°C, air inlet temperature 80°C, air input pressure 7barg - pressure dew point 7°C. Max. Operating conditions: room temperature 50°C, air inlet temperature 100°C and air input pressure 14barg. - Compliant with ISO 8573.1 - Vertical structure for space saving - Works in extreme conditions (up to 50°C ambient, 100°C input) - High energy saving design - Class 5 for residual moisture, class 3 for solid contaminants - Heat exchanger with copper pipes and aluminum cooling fins - Automatic condensate drain - Multiple models with varying capacities (see table above)
