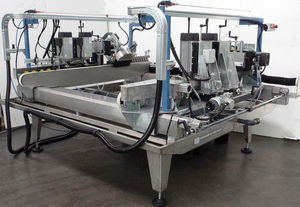

Rotary blade cutting machine MTR 500/2for marblefor granitefor natural stone
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for marble, for granite, for natural stone, for composite materials
- Product handled
- sample, for bricks
- Control type
- PLC-controlled
- Associated function
- slitting machine
- Applications
- for industrial applications
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- double-head
- Other characteristics
- automatic, high-performance, high-efficiency, with water cooling
- Cutting speed
Max.: 3,300 mm/min
(2.165 in/s)Min.: 800 mm/min
(0.525 in/s)- Overall length
2,750 mm
(108 in)- Maximum width
1,300 mm
(51 in)- Height
1,900 mm
(75 in)- Weight
950 kg
(2,094.39 lb)
Description
Automatic machine for multiple linear cutting with diamond discs. Suitable for cutting ceramic tiles of any kind, marble, granite, glass and bricks.
ADVANTAGES OF MTR 500/2 ROBUSTUS
- Side opening for large sizes.
- Double hyper-static lateral support of the motor shafts for stability and anti-vibration.
- Autonomous water recycling and / or possibility of connection to general recycling system.
- 500 mm cutting belt.
- Possibility to have 1 or 2 cutting heads on the same frame.
