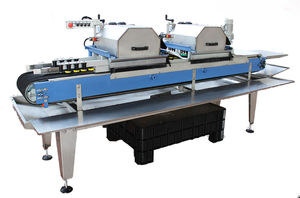

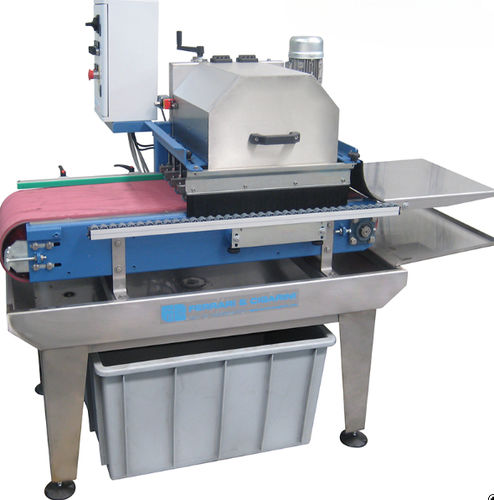

Rotary blade cutting machine TMC

rotaryfor ceramicsfor stone

PATENTED
Product description
Automatic machine for cuts, anti-slip incisions, pre-cut and special cuts such as mosaic, triangle and rhombus. Able to process marble, granite, porcelain stoneware, agglomerates, brick and single/double-fired materials.

Advantages of TMC system

• Motor-spindle shaft can mount up to 4 cutting blades, separated by spacers and flanges, to obtain different widths and multiple simultaneous cuts.
• Motorized conveyor belt improves production quality and allows continuous output.
• Guide on the motor side and pressor bar provide strong stability and high finishing quality during machining.
• All adjustments are performed via handwheels; no tools required.
• Lateral roller supports large-format pieces during processing.

Main applications

• Cutting and machining of marble and granite
• Processing of porcelain stoneware and single-fired tiles
• Machining of agglomerates and bricks
• Special cuts for mosaics, triangular and rhombic pieces

Images and multimedia
Product images available in the gallery. Demonstration video available on the product page.

Attachments
Technical/promotional documentation available: FERRARI&CIGARINI BrickWorld (PDF).

Technical specifications

• Model: TMC (1 head)
• Patented system
• Functions: cuts, anti-slip incisions, pre-cut, special cuts (mosaic, triangle, rhombus)
• Materials processed: marble, granite, porcelain stoneware, agglomerates, brick, single and double-fired materials
• Motor-spindle: mounts up to 4 cutting blades with spacers and flanges for multiple simultaneous cuts
• Conveyor: motorized belt for continuous production
• Workpiece stability: guide on motor side and pressor bar
• Adjustments: handwheels, no tools required
• Lateral roller for handling large formats
