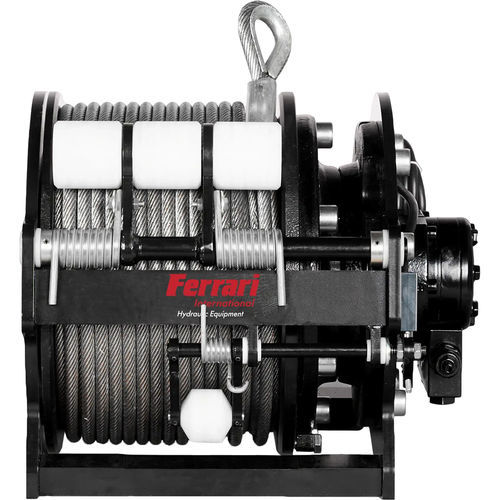

Hydraulic winch FW SXwire roperopelifting
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope, rope
- Application
- lifting, pulling
- Products applications
- for cranes
- Other characteristics
- compact
- Capacity
Max.: 6,500 kg
(14,330.05 lb)Min.: 600 kg
(1,322.77 lb)- Speed
30 m/min, 32 m/min, 45 m/min, 50 m/min, 55 m/min
- Cable diameter
6 mm, 7 mm, 8 mm, 9 mm, 10 mm
(0.24 in, 0.28 in, 0.31 in, 0.35 in, 0.39 in)- Cable length
Max.: 155 m
(508'06" )Min.: 54 m
(177'01" )- Pressure
150 bar, 160 bar, 170 bar
(2,175.57 psi, 2,320.6 psi, 2,465.64 psi)- Flow
36 l/min, 45 l/min, 60 l/min
(9.51 us gal/min, 11.89 us gal/min, 15.85 us gal/min)- Weight
Max.: 98 kg
(216.053 lb)Min.: 40 kg
(88.185 lb)
Description
Our range of FW SX winches is ideal for lifting operations and covers pulling capacities from 600kg to 6,500kg.
Thanks to their compact size, all winches offer a long rope length despite their small dimensions.
They can be equipped with various accessories.
Product not suitable for lifting people.
