Our aboveground horizontal tanks are used for the storage of: petrol, diesel and aviation
fuel for containerised fuel stations.
All the tanks are produced according to the rules EN 12285-2 or DIN 6616
The used material is mainly the certified carbon steel S235JRG2
The preparation of the outside surface of the sheets takes place through abrasive blasting at the degree Sa 2.5, according to the rule PN-ISO 8501-1 Standard epoxy outside coating Class C3, according to PN-EN ISO 12944-2
The containerised fuel stations can be used in sectors such as:
- Road transport
- Goods transport
- Rail transport
- Agriculture
- Road and motorway construction

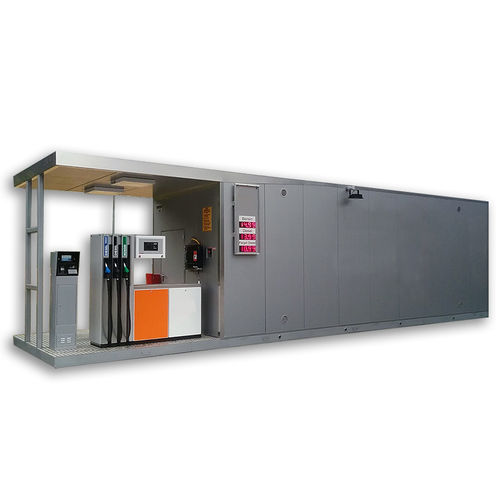

The tanks are contained inside containers and provided with all accessories and equipment,
among which the Corken pump modules FD/DLD 150 with engine 5,5 kw.
Besides, they can be provided with other two different types of pump: TOKHEIM or PIUSI (at choice).
The containerised fuel stations are available for maritime shipments (of 20 and 40 ft) and
shipments by land (10, 12, 15, 20 and 40 ft).
Technical characteristics:
Diameter: from 1600 mm to 2900 mm
Capacity: 30 m³ to 100 m³
Number of the inside chambers: from 1 to 4 according to the Customer’s requirements
