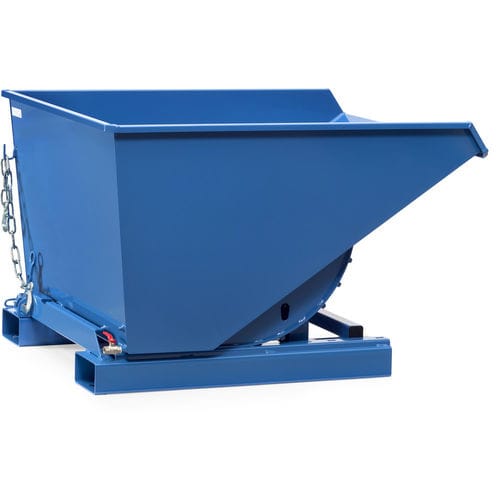

Steel self-dumping hopper 6090A

for bulk materials

Self-tilting box without drainage tap for bulk goods for automatic tipping over skids Self-tilting boxes need not to be lifted for emptying. The empty box moves automatically back into loading position. Sturdy welded 3 mm sheet steel design, powder coated in RAL 5007 blue. Standard-fitted fork-lift sleeves, anti-roll safety device and tilt lock. Link chain as anti-skidding and safety device. Traction cable to activate tilting mechanism, operated from fork-lift truck driver's seat. Technical Data Total Load Capacity (kg) - 2000 Total Length (mm) - 1294 Total Width (mm) - 1660 Total Height (mm) - 833 Box Dimensions (mm) - 1237 Pouring Edge Height Without Wheels (mm) - 744 Pouring Edge Height With Wheels (mm) - 989 Content (Liters) - 900 Version - without drainage tap
