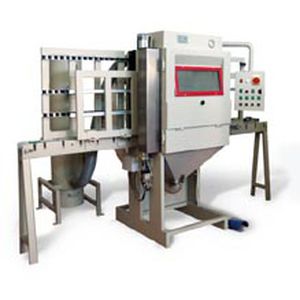

suction blast cabinet / automatic

Add to MyDirectIndustry favorites
suction blast cabinet / automatic suction blast cabinet / automatic


  • Technology:


  • Operational mode:



Sand-blaster machine with a pressure-recycle (see into the side-picture) or with a depression recycle. Available either pressure-sand blasting machines or with a depression system, both suitable to every kind of surfaces and with a powerful, careful action, even if with simple use. All these qualities enable you to check continuously the product during its realization thanks to a big and enlightened view of the cab and a costant improvement of the system itself, filtration and abrasive recycle.

Blasting of both small and wide plates, up to 120 mm. thick
Side and top openings, to be used for wide plates, with conveyor rollers fitted on watertight bearings
Fully opening front shutter, to be used for small plates, with internal supporting surface
Cyclone system for powder separation and total recovery of abrasive
Low air consume (it can work with a 5.5 Hp compressor)
Plate-racks, which can be separated from the box according to the available space
100 Watt halogen lamp for work area lighting
Tungsten carbide nozzle
Stratified security front glass
Box painted in furnace-burnt epoxy powders, in order to secure the highest standing to wear
Unit for the horizontal movement (translation):
horizontal translatory motion range up to 600 mm.;
movement amplitude and speed adjustable through ending stroke;
translatory motion by means of a motor-variator;
