Diesel generator set P660-3
three-phasestationary50 Hz

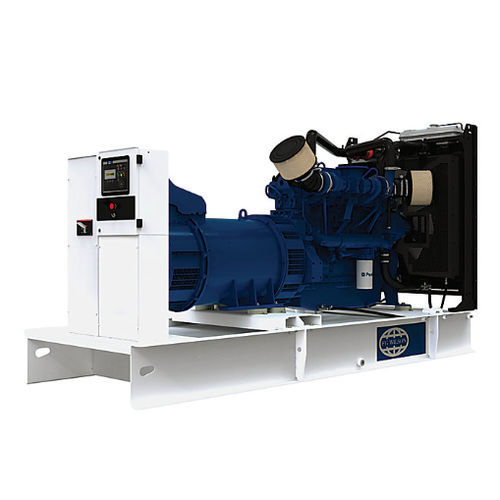

Diesel generator set - P660-3 - FG WILSON - three-phase / stationary / 50 Hz
Diesel generator set - P660-3 - FG WILSON - three-phase / stationary / 50 Hz
Diesel generator set - P660-3 - FG WILSON - three-phase / stationary / 50 Hz - image - 2
Diesel generator set - P660-3 - FG WILSON - three-phase / stationary / 50 Hz - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
oil-cooled
Applications
industrial
Power in kVA

600 kVA, 660 kVA
(815.77 hp, 897.35 hp)

Rated capacity

480 kW, 528 kW
(652.6 hp, 717.9 hp)

Voltage

Min.: 220 V

Max.: 415 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Length

3,900 mm
(154 in)

Width

1,461 mm
(57.5 in)

Height

2,156 mm
(84.88 in)

Weight

4,274 kg, 4,342 kg
(9,422.56 lb, 9,572.47 lb)

Description

The new 350 - 750 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust. The Story The 350 - 938 kVA range from FG Wilson is designed by our expert engineers to deliver power you can trust. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. Expert Design... Trusted Power FG Wilson Diesel Engine The Perkins 2000 Series offers excellent performance from the well-proven 6 cylinder 13, 15 & 18 litre in-line diesel engines. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. Its premium design ensures economic and durable operation, low emissions and advanced performance and reliability. Alternator Benefiting from a choice of FG Wilson branded and Leroy Somer alternators across the range offering the excellent performance and reliability you expect from FG Wilson. PowerWizard 1.1+ The FG Wilson FG100 range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our FG100 range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed. Testing & Validation Fully prototype tested with certified torsional vibration analysis available
