Diesel generator set P2250-3M
three-phasestationaryindustrial

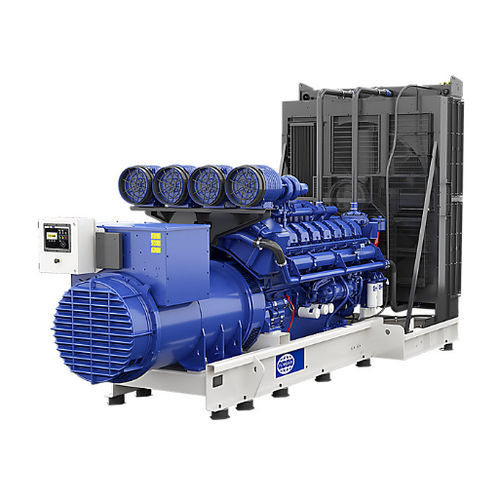

Diesel generator set - P2250-3M - FG WILSON - three-phase / stationary / industrial
Diesel generator set - P2250-3M - FG WILSON - three-phase / stationary / industrial
Diesel generator set - P2250-3M - FG WILSON - three-phase / stationary / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Applications
industrial
Power in kVA

2,000 kVA, 2,250 kVA
(2,719.24 hp, 3,059.15 hp)

Rated capacity

1,600 kW, 1,800 kW
(2,175.4 hp, 2,447.3 hp)

Voltage

Min.: 220 V

Max.: 415 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Length

5,839 mm, 6,424 mm
(230 in, 253 in)

Width

2,184 mm, 2,196 mm
(86 in, 86.5 in)

Height

2,574 mm, 2,605 mm
(101.34 in, 102.56 in)

Weight

12,215 kg, 12,528 kg, 12,610 kg, 13,208 kg
(26,929.47 lb, 27,619.51 lb, 27,800.29 lb, 29,118.66 lb)

Description

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible. Features At A Glance Our Large Product Range Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need. Industry Leading Perkins Diesel Engine The 16 cylinder Perkins 4016TRG range gives you the versatility and heavy duty performance you need in today's power generation market. The 4016TRG range engines have exceptional power-to-weight ratio and compact design, making them easy to transport and install. The 4016-61TRG is quad turbocharged and air-to-water chargecooled

Catalogs

P2250-3M
P2250-3M
6 Pages
