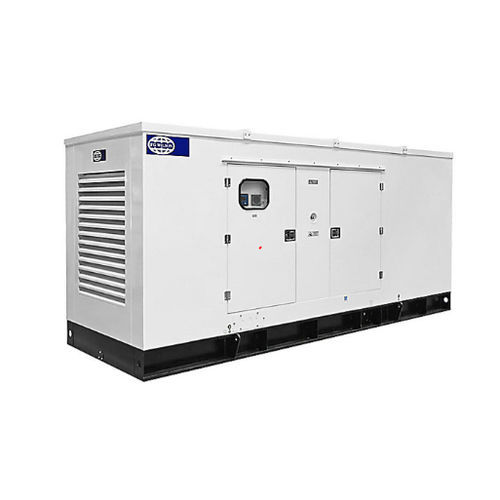

Diesel generator set FB250-4A

three-phasestationary50 Hz

Our product range designed exclusively for the Indian market is available from 40 - 250 kVA. This CPCB IV+ compliant range provides outstanding value for money, guaranteeing maximum efficiency and productivity. Features At A Glance World Wide Product Support FG Wilson manufactures product in the following locations: Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network. Single-Source Supplier Fully prototype tested with certified torsional vibration analysis available Engine Specifications Engine Model - H4G4DE82 Governor Type - Electronic A0 Stroke - 118 mm Bore - 104 mm Displacement - 4 Compression Ratio - 16.5:1 Air Inlet Air Cleaner Cooling Cooling system filled with coolant mix Radiator and Cooling Fan Exhaust Exhaust stub pipe & gasket Alternator Leroy Somer 415V, 50Hz (1500 rpm, 4 pole, Star formation, Brushless, IP 23, Class H/H insulation, AVR controlled, Voltage regulation +/-1%, and has good motor starting capability and ability to withstand good thyristor loading, with necessary short circuit and overload protection, B20 footmounting with IC01 cooling. Mounting Anti-vibration mounts Base, formed steel with single wall fuel tank Power 100A circuit breaker General Generating set is load tested and all protective devices and control functions are simulated and checked
